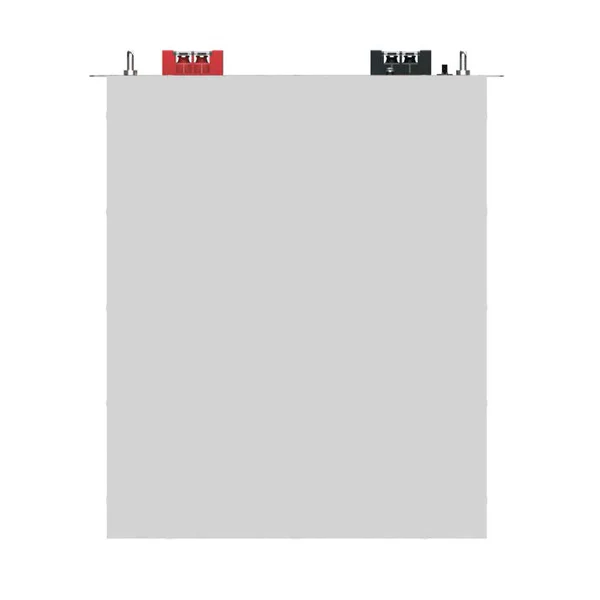

BSL Battery 51.2V 3U 100Ah CANBUS 5.12kWh

The BSL 5.1kWh 3U CANBUS LiFePO4 Battery (Model: B-LFP48-100E 3U) is a high-performance, modular, and scalable battery ideal for both on-grid and off-grid energy storage systems. Experience superior energy management with the Bslbatt 51.2V U3 100Ah Canbus Battery, delivering 5.12 kWh of efficient and reliable power storage. Designed for high-performance applications, this battery features state-of-the-art technology for comprehensive monitoring and enhanced battery management.

Here are the key highlights and specifications:

BSL 5.12kwh Battery Key Features:

• Capacity & Longevity:
  • 2V, 5.12kWh capacity with 100Ah internal BMS.
  • Composed of 16 UL-listed prismatic LiFePO4 cells in series, tested for 6000 deep discharge cycles to 80% Depth of Discharge (DoD). This means the battery can be fully charged and discharged daily for over 15 years.
  • 12-year warranty when used with BSL inverters and batteries.
• Compact & Modular Design:
  • The battery is designed to be compact, offering more capacity at a competitive price.
  • Modular and scalable, making it adaptable for expanding your energy storage as required.
• Safety & Certifications:
  • UL Standard certified, ensuring it meets rigorous safety standards.
  • Safe and reliable LiFePO4 technology, known for its stability and long cycle life.
• Fast Charging:
  • Standard charge: 0.5C (50A) takes approximately 3 hours.
  • Rapid charge: 1C (100A) takes approximately 1.5 hours.
• High Discharge & Pulse Capability:
  • Max charge current: 50A, Max discharge current: 100A, with a pulse current of 150A for 300ms.
• Environmental Durability:
  • Operating temperature ranges: Charging: 0°C ~ 45°C, Discharging: -20°C ~ 55°C, Storage: -10°C ~ +45°C.

BSL 5.12kwh Battery Technical Specifications:

• Model:B-LFP48-100E 3U
• Nominal Voltage:2V
• Nominal Capacity:100Ah
• Energy:12kWh
• Charge Voltage:DC 58.4V
• Standard Charge Current:50A (0.5C)
• Max Charge Current:100A (1C)
• Max Discharge Current:100A
• Max Pulse Current:150A (300ms)
• Discharge Cut-off Voltage:40V
• Cell Configuration:16S2P
• Operating Temperature:Charging: 0°C ~ 45°C, Discharging: -20°C ~ 55°C
• Weight: 46 kg
