BYD 15.4kWh 48V Battery-Box Premium LVL lithium iron phosphate
Out of stock with Supplier & Manufacturer ETA is 4-8 Weeks, as soon as the stock is available the system will be updated. If needed you can place backorder with our sales team to get stock when is available. Below you can click the button to request quotation or ask to be emailed when stock is available.
R91999.00
Sold out!
Email when stock available

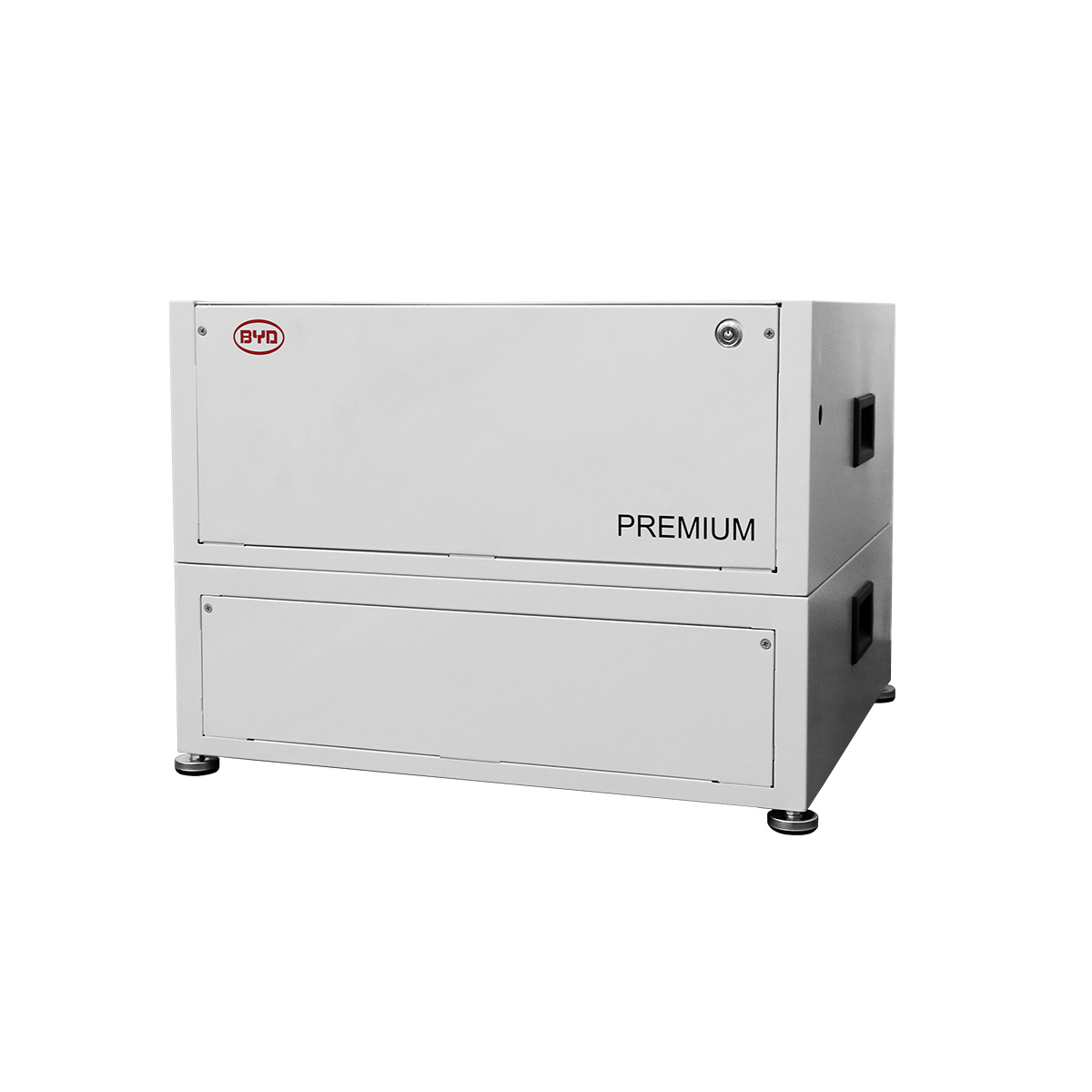

The BYD Battery-Box Premium LVL is a lithium iron phosphate (LFP) battery for use with an external inverter. Thanks to its control and communication port (BMU), the Battery-Box Premium LVL scales to meet the project requirements, no matter how large they may be. Start with Battery-Box Premium LVL15.4 (15.36 kWh) and extend anytime to 983 kWh using parallel interconnection of up to 64 batteries. Features
- Scalable from 15.4 to 983 kWh.
- Compatible with 1 and 3 Phase Inverters.
- Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life.
- Cycle, and Power.
- Capable of High-Powered Back-up and Off-Grid Function.
- Space Saving via the Ability to Stack 2 Premium Batteries.
- Add Additional Batteries in Parallel to Expand the System.
Specifications – LVL15.4
- Number of Modules: 2.
- Usable Energy: 15.36 kWh.
- Max Cont. Output Current: 250 A.
- Peak Output Current: 375 A, 5 s.
- Dimensions (H/W/D): 500 x 575 x 650 mm.
- Weight: 164 kg.
- Nominal Voltage: 51.2 V.
- Operating Voltage: 40-59 V.
- Operating Temperature: -10 °C to +50°C.
- Battery Cell Technology: Lithium Iron Phosphate (cobalt-free).
- Communication: CAN/RS485.
- Enclosure Protection Rating: IP20.
- Round-trip Efficiency: ≥95%.
- Scalability: Max. 64 in Parallel (983 kWh).
- Certification: IEC62619 / CE / CEC / UN38.3.
- Applications: ON Grid / ON Grid + Backup / OFF Grid.
- Warranty: 10 Years.
- Compatible Inverters: Refer to BYD Battery-Box Premium Inverter Compatible List and Minimum Configuration List.
| Weight | 164 kg |
|---|---|
| Dimensions | 500 × 575 × 650 mm |
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ITnerfricaShop and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
