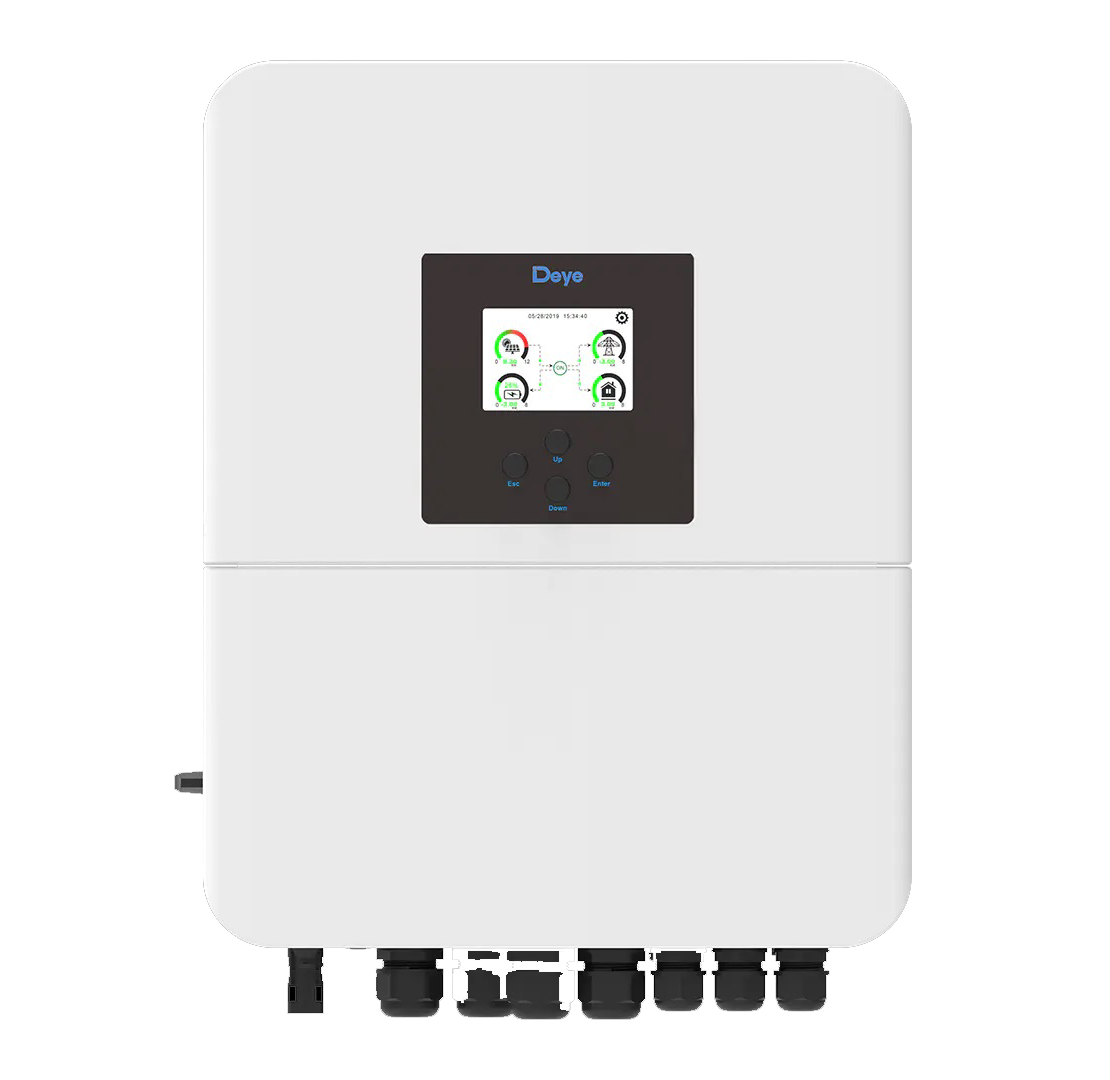

Deye 5Kw Single Phase Hybrid Inverter New

Based on the product technical data sheet, here is a clear breakdown of the core electrical and mechanical specifications for the Deye 5kW Single-Phase Hybrid Inverter to assist with your technical planning and client setups.

🔋 Battery Integration

• Supported Chemistries: Lithium-ion and Lead-acid (Low Voltage)

• Operational Voltage Window: 40V to 60V

• Max Charging / Discharging Performance: 120A

• BMS Integration: Self-adaptive matching to the battery’s BMS protocol.

• Management Control: Built-in 6-period daily timer for optimized charging and discharging schedules (ideal for managing peak/off-peak grid tariffs or load-shedding windows).

☀️ Solar Array (PV) Input

• Max Allowed DC Input Power: 8000W (enables over-clocking the DC side for optimal low-light performance)

• Max DC System Voltage: 500V

• MPPT Architecture: 2 independent MPPT trackers / 1+1 string configuration

• MPPT Operational Voltage Range: 150V to 425V

• Max Input Current per MPPT: 18A + 18A

• Max Short-Circuit Current : 27A + 27A

⚡ AC Grid & Load Performance

• Nominal AC Output Power: 5000W

• Maximum AC Apparent Power: 5500VA

• Nominal Current Output: 21.8A (at 230V single-phase)

• Maximum Current Output: 24A

• Continuous AC Pass-through Current: 35A (Maximum capacity passing directly from grid to essential/non-essential loads)

• Off-Grid Peak Surge Capacity: 10,000W (2 times the rated output) sustained for up to 10 seconds to handle high inductive startup currents from pumps or compressors.

⚙️ System Mechanics & Features

• Environmental Protection: IP65 Rated (suitable for both indoor and outdoor installations, offering high resistance to dust and moisture).

• System Scalability: Supports up to 16 units connected in parallel for both on-grid and off-grid configurations, making it adaptable for future capacity expansion.

• Retrofit Capabilities: Supports AC-coupling, allowing it to easily integrate with and manage pre-existing grid-tied PV systems.

• Generator Port: Dedicated input control to store and manage backup power sourced from automated diesel generators.

⚠️ Design Note: When stringing high-power modules (like the 585W N-Type panels), ensure the combined open-circuit voltage corrected for cold temperatures does not exceed the absolute 500V maximum DC limit, and that operating voltages sit comfortably within the 150V–425V MPPT range for maximum efficiency.

DatasheetSUN-3-6K-SG04LP1-SM220260424en
