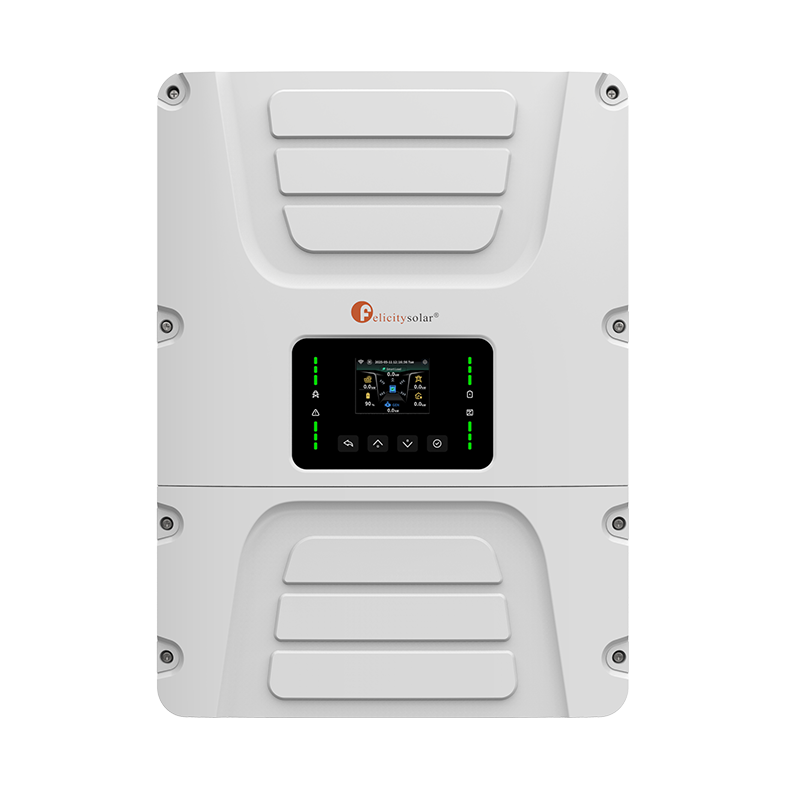

Felicity Solar 6kW Off-Grid Inverter
In stock at supplier. All prices include VAT. 🚚 Same-day delivery available for morning orders in Gauteng, with FREE delivery within 10 km. Orders below R1,500 may incur a delivery fee. Orders containing only one solar panel will incur an additional charge and will be requoted accordingly. If an item becomes unavailable after purchase, we will offer a full refund or an alternative product. 💬 Confirm stock or request a quotation via the WhatsApp button below with our sales team.
R8499.00
In stock at supplier. All prices include VAT. 🚚 Same-day delivery available for morning orders in Gauteng, with FREE delivery within 10 km. Orders below R1,500 may incur a delivery fee. Orders containing only one solar panel will incur an additional charge and will be requoted accordingly. If an item becomes unavailable after purchase, we will offer a full refund or an alternative product. 💬 Confirm stock or request a quotation via the WhatsApp button below with our sales team.
The Felicity Solar 6kW Inverter is a powerful and flexible energy management solution designed for residential, commercial, backup power, and off-grid solar applications. Model IVAM6048P1G1 combines a pure sine wave inverter, MPPT solar charge controller, and battery charger into a single unit, providing efficient management of solar generation, battery storage, and connected loads.
Featuring dual MPPT technology, the Felicity Solar inverter can efficiently manage solar input while maximising the available energy generated by the PV array. The dual MPPT design also provides greater flexibility when configuring solar panels across different strings or orientations.
The IVAM6048P1G1 supports lithium battery systems and features intelligent charging management to help maintain a stable and reliable power supply during grid outages or off-grid operation. Its integrated design simplifies the energy management process while providing dependable performance for everyday solar and backup applications.
Advanced protection features help safeguard the inverter and connected equipment, while user-friendly monitoring capabilities provide convenient access to important system information.
Backed by a 5-year warranty, the Felicity Solar 6kW Hybrid Inverter is a practical choice for customers looking for reliable solar power, intelligent battery management, and greater energy independence in one versatile inverter solution.
| Parameter / Feature | Specification Value |
| Model |
IVAM6048P1G1
|
| Battery Input Data | |
| Battery Type |
Lead-acid or Lithium-ion |
| Battery Voltage Range (V) |
40~60 |
| Max. Charging Current / Max. Discharging Current (A) |
135 |
| Charging Strategy for Li-Ion Battery |
Self-adaptation to BMS |
| Number of Battery Input |
1 |
| PV String Input Data | |
| Max. PV Access Power (W) |
6000W for per PV |
| Max. PV Input Power (W) |
9600 |
| Max. PV Input Voltage (V) |
500 |
| Start-up Voltage (V) |
120 |
| PV Input Voltage Range (V) |
90~500 |
| MPPT Voltage Range (V) |
90~425 |
| Full Load MPPT Voltage Range (V) |
300~425 |
| Rated PV Input Voltage (V) |
370 |
| Max. Operating PV Input Current (A) |
20+20 |
| Max. Input Short-Circuit Current (A) |
27+27 |
| No. of MPP Trackers / No. of Strings MPP Tracker |
2 / 1+1 |
| AC Output Data | |
| Rated AC Output Power (VA/W) |
6000 |
| Max. AC Output Power (VA/W) |
6000 |
| Max. AC Output Current (A) |
26.1 |
| Peak Power (W) |
2 Times of Rated power, 10s |
| Rated Output Voltage (V) |
230 |
| Output Type |
L+N+PE |
| Rated Output Frequency |
50Hz/60Hz |
| Output Voltage Waveform |
Pure Sine Wave |
| AC Input Data (Grid and Generator) | |
| Max. Input Power to Battery (W) |
6000 |
| Rated Input Voltage (V) |
230 |
| Rated Input Frequency |
50Hz/60Hz |
| Grid Input Current (A) |
35 |
| Generator Input Current (A) |
35 |
| Equipment Protection | |
| AC Output Overvoltage Protection |
Yes |
| AC Output Short Circuit Protection |
Yes |
| AC Output Overcurrent Protection |
Yes |
| DC Polarity Reverse Connection Protection |
Yes |
| Thermal Protection |
Yes |
| DC Terminal Insulation Impedance Monitoring |
Yes |
| DC Component Monitoring |
Yes |
| Ground Fault Current Monitoring |
Yes |
| Arc fault circuit interrupter (AFCI) |
Optional |
| Power Network Monitoring |
Yes |
| Earth Fault Detection |
Yes |
| DC Input Switch |
Yes |
| Overvoltage Load Drop Protection |
Yes |
| Surge Protection Level |
TYPE II (DC), TYPE II (AC) |
| General Data | |
| Display |
LCD+LED |
| Communication Interface |
RS485, CAN |
| Monitor Mode |
WIFI/LAN (Optional) |
| Operating Temperature Range |
-40 to +60°C, >45°C Derating |
| Ingress Protection (IP) Rating |
IP65 |
| Over Voltage Category |
OVC II (DC), OVC III (AC) |
| Warranty |
5 Years |
| Type of Cooling |
Intelligent Air Cooling |
| Net Weight |
13.5kg |
| Product Dimension |
320x432x183mm |
| Package Dimension |
412x532x270mm |
| Safety EMC / Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Weight | 13.5 kg |
|---|---|
| Dimensions | 320 × 432 × 183 mm |
