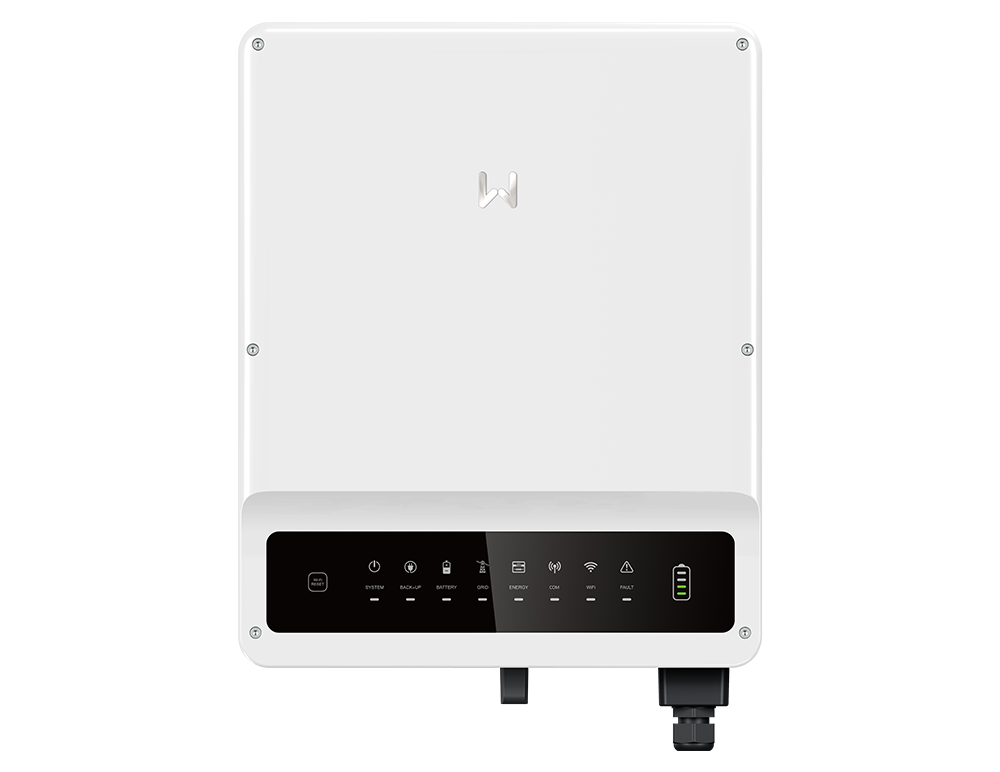

GoodWe GW10K-ET Three Phase Hybrid Inverter (HV Battery)

GoodWe GW10K-ET Three Phase Hybrid Inverter (HV Battery)

The brand new ET Series, from GoodWe, is a three-phase high voltage energy storage inverter that enables enhanced energy independence and maximizes self-consumption through an export limit feature and time of use shifts for reduced electric bills. Covering a power range of 5 kW, 8 kW and 10 kW, the ET Series allows up to 10% overloading to maximize power output and features Uninterruptible Power Supply Function (UPS) to inductive loads such as air conditioners or refrigerators with an automatic switchover time of less than 10 milliseconds, providing savings when the grid is up and independence and security when it is down or compromised.

PRODUCT FEATURES

• 180~600V Wide Battery Voltage Range
  Compatible with various high voltage batteries and offers flexibility and affordability to fulfil various customer demands.
• 98.2 % Maximum System Efficiency
  Due to GoodWe’s cutting-edge patented technology, combined with high voltage batteries, the system’s efficiency can reach up to 98.2%, fully making use of solar energy.
• Fanless Design Quiet Operation
  The Fan-less design does not only ensure a longer lifespan for the non-stop working inverter, but also creates a quiet operating atmosphere for daily life.
• Battery Input Voltage Range: 180-600 V
• Charging Strategy for Li-Ion Battery: Self-adaption to BMS
• Max. DC Input Power: 13000 W
• MPPT Input voltage range: 200-850 V
• Max. DC Input Voltage: 1000 V
• Start-up Voltage: 180 V
• Nominal Output Voltage: 400/380, 3L/N/PE
• Protection Rating: IP65
• User Interface: LED & APP
• Communication: CAN / RS485 / WiFi
• Size (Width x Height x Depth, mm): 516 x 415 x 180
• Weight: 24 kg
