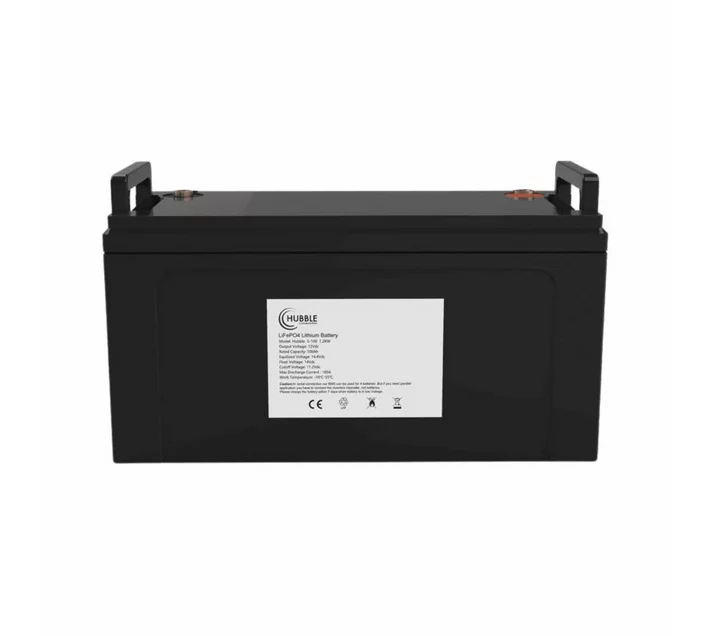

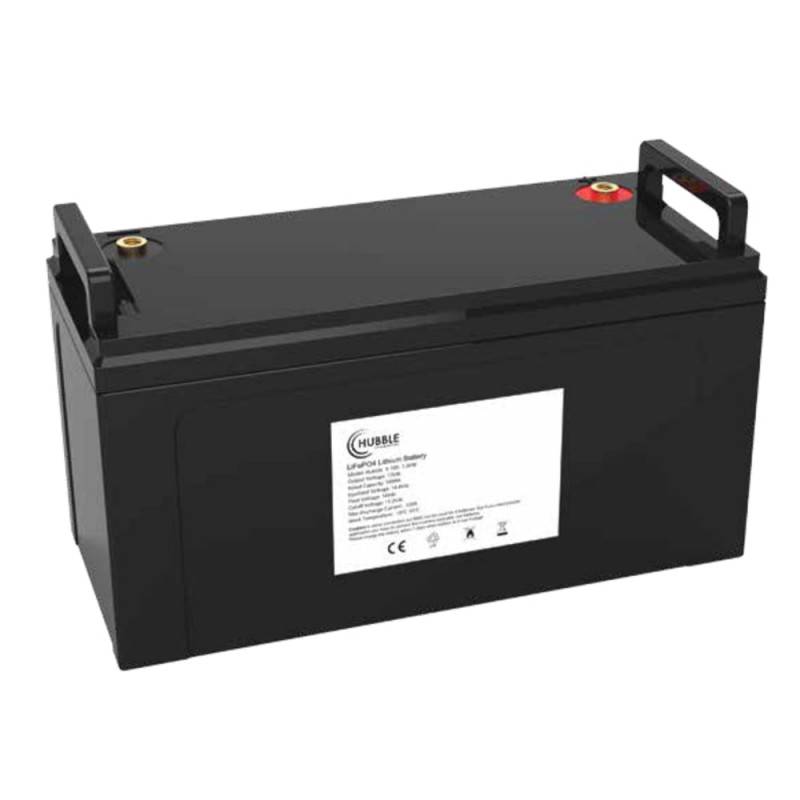

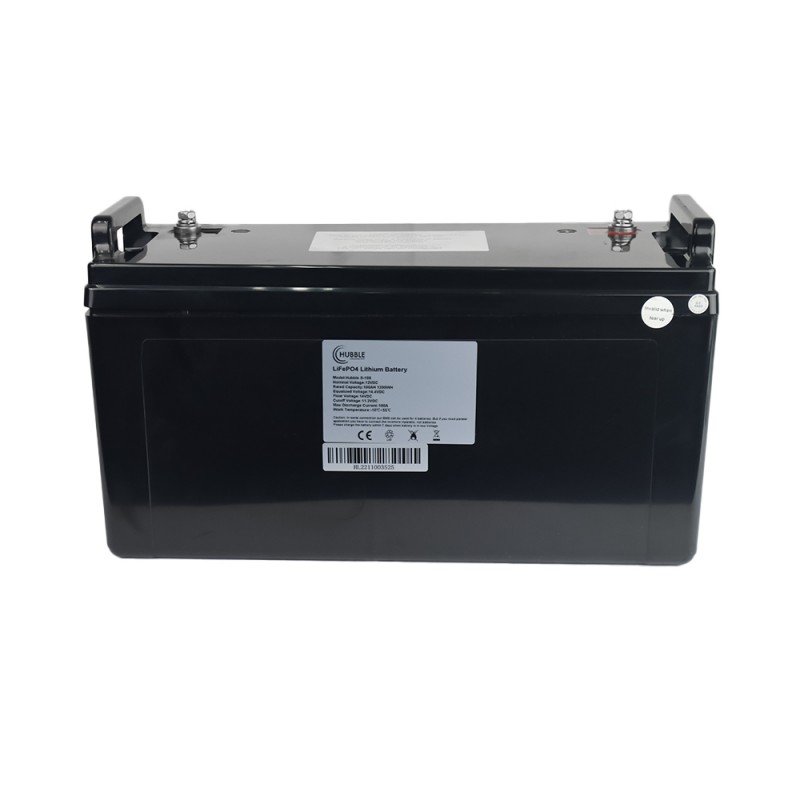

Hubble S100A 1.28kWh 12.8V Lithium Battery

Name: Hubble S100A 1.28kWh 12.8V Lithium Battery
SKU: 186211
Availability: InStock

Availability:

In Stock at Supplier. All prices include VAT. 🚚 Same-day delivery available for morning orders in Gauteng, with FREE delivery within 10 km. Orders under R1500 will incur a delivery fee. If the item becomes unavailable after purchase, our team will contact you to offer a full refund or an alternative product. 💬 Need to confirm stock first? Click the WhatsApp button below to chat with our team. Or request a quotation.

R4664.68

Description

The S-100A has a integrated BMS inside the battery container, which also contain the prismatic lithium cells. The S-100A can be connected up to 4 times in series maximum. You can configure the batteries in 12V, 24V, 36V or 48V in series. You can run a maximum of 4 x S-100 units in series (48VDC) and 4 strings in parallel for a total of 16 batteries in one battery bank. Ensure that current for charge and discharge is limited to 100A for the complete bank no matter how many batteries are used.

S-100A 12.8V 1.2KWH
• High Cycle Life and Service Life – 3500cycles @ 80% DOD
• High Performance Lithium battery
• Internal Battery Management System
• Excellent high temperature performance
• High energy density and conversion efficiency
• Can be configured in 12V, 24V, 36V or 48V in series
• Easy drop in replacement for old lead acid battery installs
• BMS protects internal cells and ensures smooth operation
• Compatible with most UPS & Inverters using AGM/VRLA charge setting
• Built-in protection for over-charge, over-discharge & over-temperature
• External cell balancer required when placing in series to ensure balancing
• Perfect replacement Lithium solution for upgrading your lead acid installation

Technical Specs:

Rated Capacity (5HR): 100Ah
Nominal Voltage: 12.8 V
Max. Charging Current: 100A
Max. Continuous Discharging Current: 100A
Cell C Rating: 1.0C
Weight: Approx. 10.5kg
Configuration: 4 in series with 4 banks in parallel for maximum 16 batteries
Parallel: Parallel connection is up to 4 strings
Dimensions (W x D x H): 305mm x 170mm x 220 mm
Maximum DC Limits: Maximum 100 Amp Charge per bank & 100 Amp discharge per bank
Cells: 1st LiFe Prismatic LiFePO4
Design Life: +/- 15 years
Cycle Life @ 1C: +/- 3500 Cycles @ 80% DOD
Certification: CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015
Outer Package Material: Black Polypropylene Plastic
Operating Temperature: Charging: 0 to +55°C | Discharging: -20 to +55°C | Storage: -20 to +55°C
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Under Voltage Protection
IP Rating: IP65
