Luxpower 48v 10KW Sine Wave Hybrid Inverter 10000Watt 230v
In Stock, Note: All of our prices are Including VAT. Same day FREE DELIVERY (30km) distance in Gauteng | Delivery Only. If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, click the WhatsApp button below to chat with the team.
In order to receive free shipping, customers must be within a 30km delivery radius in Gauteng. No more Collections, We do Delivery Only for all our Stock. Orders for solar panels must include a minimum of 4 units. Extra fees may be charged for deliveries to remote locations and will be provided upon request.
R37790.00
In Stock, Note: All of our prices are Including VAT. Same day FREE DELIVERY (30km) distance in Gauteng | Delivery Only. If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, click the WhatsApp button below to chat with the team.

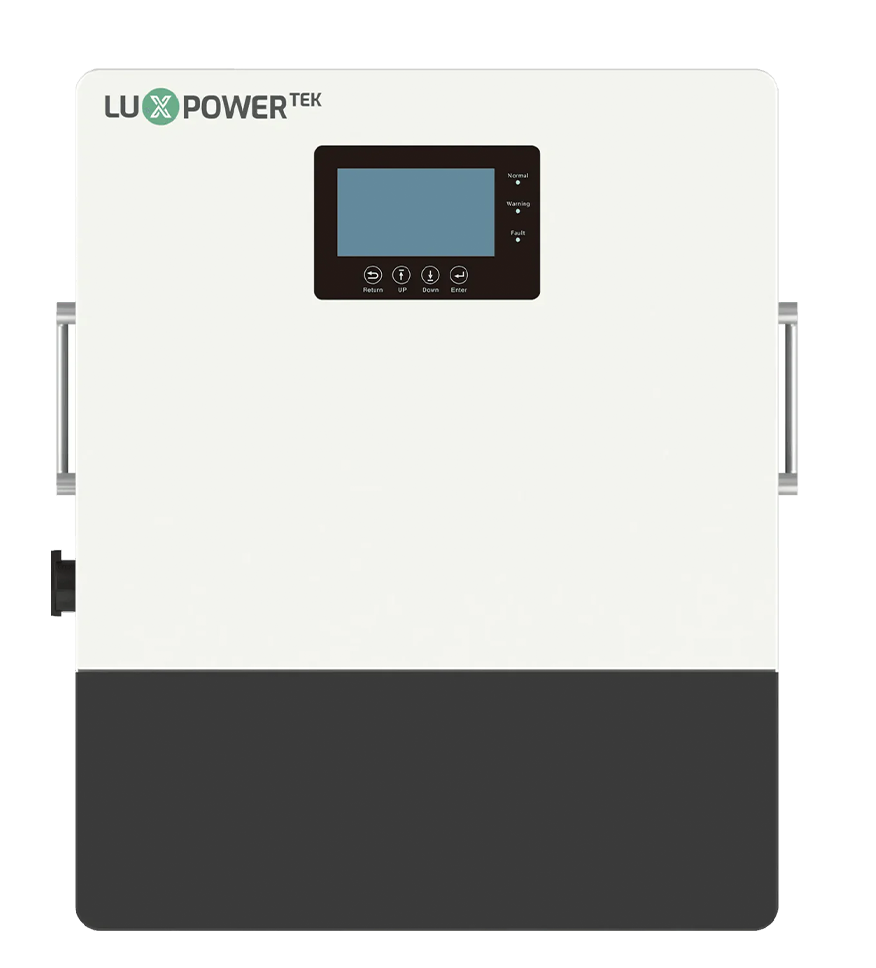

Luxpower 10KW Hybrid Inverter 10000Watt
Battery Parameters • Compatible Battery Type: Lead-acid / Lithium
• Nominal Battery Voltage: 48VDC
• Battery Voltage Range: 40VDC-60VDC
• Maximum Charge / Discharge Current: 210A
• Maximum Charge / Discharge Power: 10 000W
DC PV Input • Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
• Maximum PV Input: 16 000W
• DC Input Voltage Range: 100VDC-600VDC
• Nominal DC Input Voltage: 360VDC
• Full Power MPPT Voltage Range: 210VDC-500VDC
• Maximum DC Input Current: 25A / 15A / 15A
• MPPT Number / Strings per MPPT: 3(2/1/1)
AC Output (Grid) • Nominal Power: 10 000W
• Nominal AC Voltage: 240VAC
• Operating Voltage Range: 180VAC-270VAC
• Maximum Continuous AC Current: 41.6A @ 240VAC
• Nominal AC Frequency: 50Hz / 60Hz
UPS Output (With Battery) • UPS Max Output Power: 10 000W
• UPS Nominal Output Voltage: 240VAC
• UPS Nominal Output Frequency: 50Hz / 60Hz
• UPS Nominal Output Current: 41.6A @ 240VAC
• Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
• Switching Time: <20ms
Environment Limit • Ingress Protection: IP65
• Operating Temperature Range: -25°C to +60°C
• Cooling: Fan
• Communication: RS485 / WIFI / CAN
