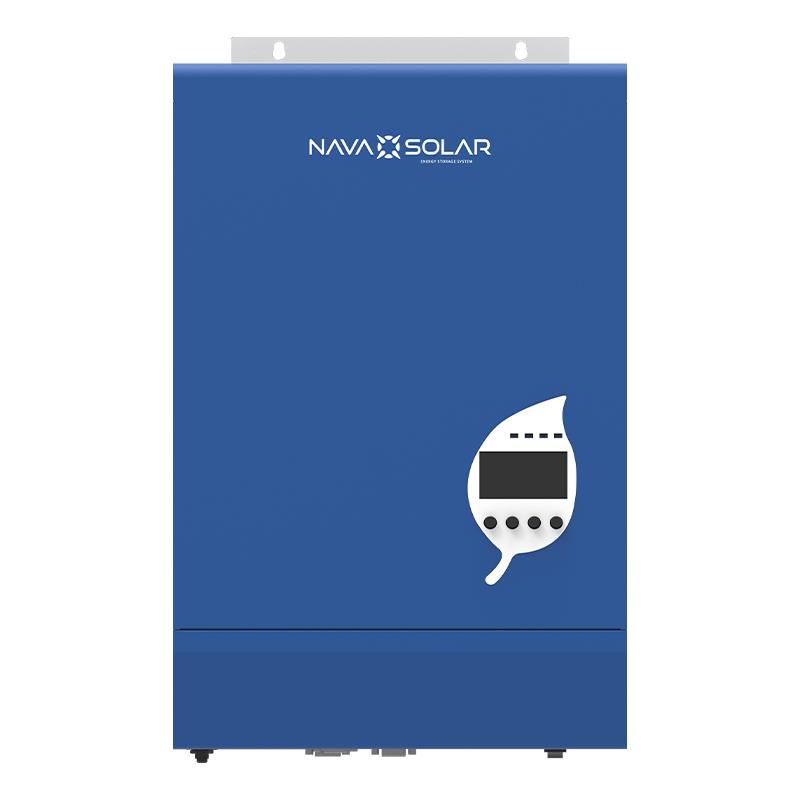

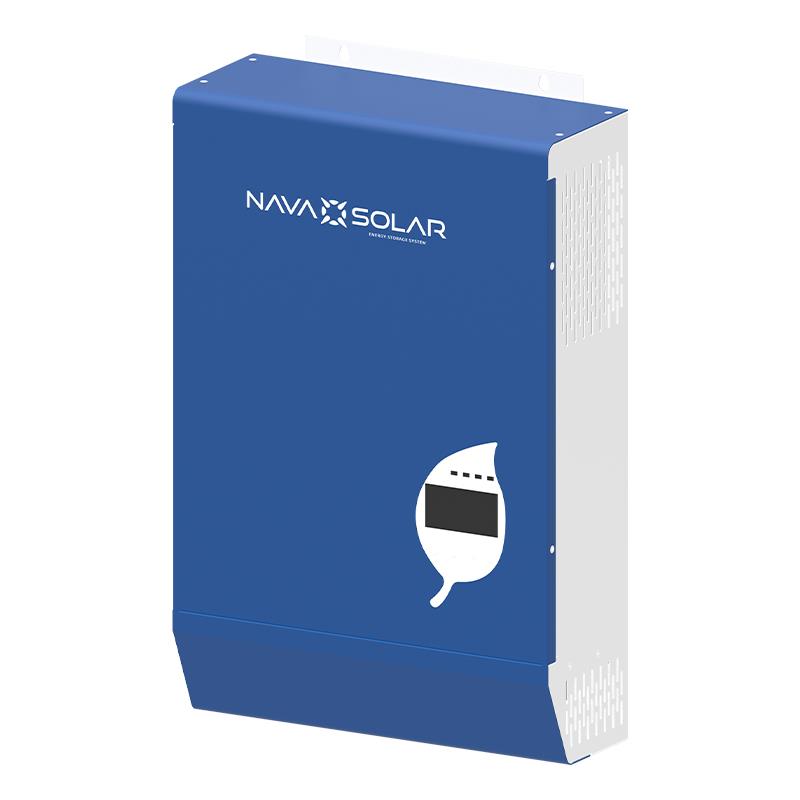

NavaSolar Off-grid Solar Inverter X Series 48v
In Stock at Supplier. All prices include VAT. 🚚 Same-day delivery available for morning orders in Gauteng, with FREE delivery within 10 km. Orders under R1500 will incur a delivery fee. If the item becomes unavailable after purchase, our team will contact you to offer a full refund or an alternative product. 💬 Need to confirm stock first? Click the WhatsApp button below to chat with our team. Or request a quotation.
In order to receive free shipping, customers must be within a 30km delivery radius in Gauteng. No more Collections, We do Delivery Only for all our Stock. Orders for solar panels must include a minimum of 4 units. Extra fees may be charged for deliveries to remote locations and will be provided upon request.
R11385.00
In Stock at Supplier. All prices include VAT. 🚚 Same-day delivery available for morning orders in Gauteng, with FREE delivery within 10 km. Orders under R1500 will incur a delivery fee. If the item becomes unavailable after purchase, our team will contact you to offer a full refund or an alternative product. 💬 Need to confirm stock first? Click the WhatsApp button below to chat with our team. Or request a quotation.
NavaSolar Off-grid Solar Inverter – X Series 48v
FEATURES:
- Pure Sine Wave solar inverter
- Output power factor up to 1.0
- Compatible to AC mains or generator inputs
- Considerable PV input types
- Build-in smart solar charger (PWM/MPPT)
- Battery independent design(5kW)
- Auto restart while AC is recovering
- Configurable AC/Solar input priority via LCD setting
- Selectable input voltage range for home appliances and personal computer loads
SPECIFICATIONS:
| Nominal Battery System Voltage |
48VDC
|
| Parallel Capability |
Yes, up to 9 units
|
| Operation Without Battery |
Yes
|
|
|
|
| INVERTER OUTPUT | |
| Rated Power | 5000W |
| Surge Power | 10000W |
| AC Voltage Regulation(Batt.Mode) | (220VAC~240VAC) ±5% |
| lnverter Efficiency(Peak) | 94% |
| Transfer Time | 10ms(typical) |
| AC INPUT | |
| Voltage | 208/220/230/240VAC |
| Selectable Voltage Range | 170~280Vac(for personal Computer) |
| 170~280Vac(for personal Computer) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) |
| BATTERY | |
| Normal Voltage | 48VDC |
| Floating Charge Voltage | 54.8VDC |
| Overcharge Protection | 60VDC |
| SOLAR CHARGER AND AC CHARGER | |
| Maximum PV Array Open Circuit Voltage | 450VDC |
| PV Array Voltage Range | 450VDC |
| Maximum PV lnput Power | 5500W |
| Maximum Solar Charge Current | 80A |
| Maximum Efficiency | 98% |
| Maximum AC Charge Current | 80A |
| Maximum Charge Current | 80A |
1000_2B3E1AC5F54A4977AC5C0DF9D76A63E8
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ITnerfricaShop and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
