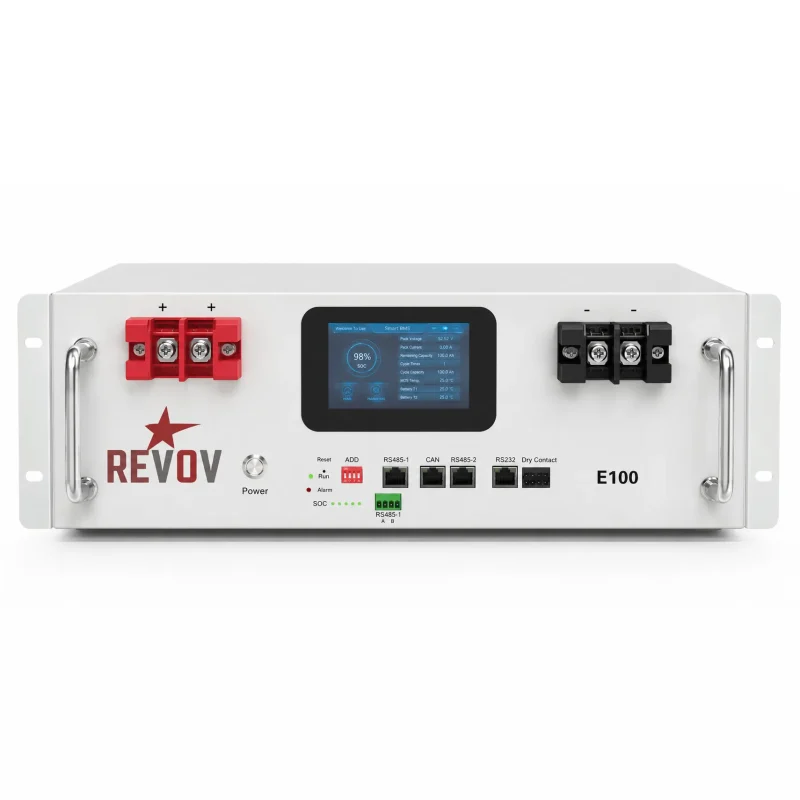

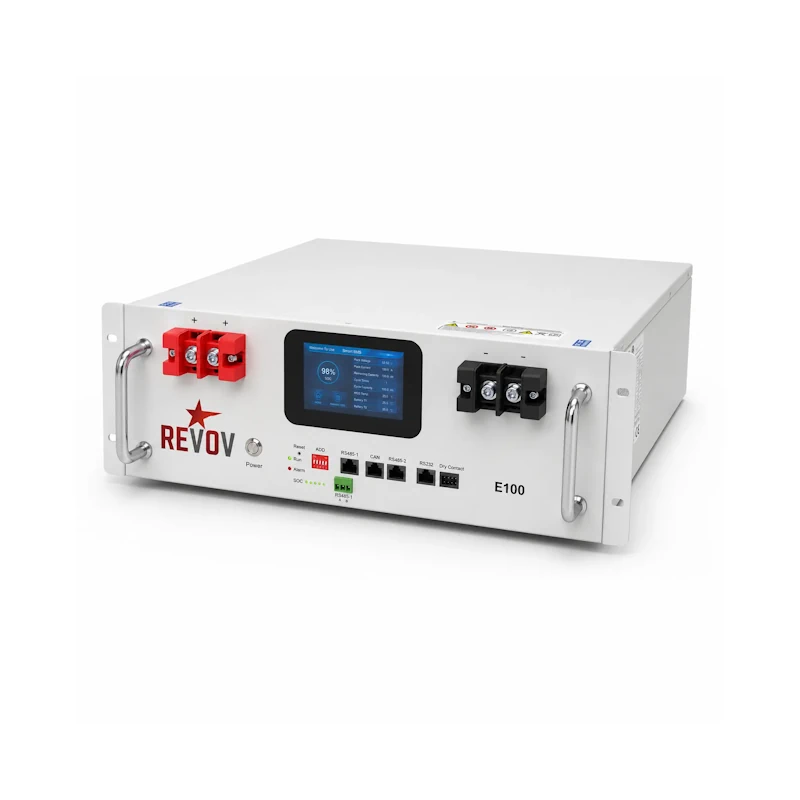

REVOV Lithium E100 5.1kWh 51.2V Battery 1C with Touchscreen
In stock at supplier. All prices include VAT. 🚚 Same-day delivery available for morning orders in Gauteng, with FREE delivery within 10 km. Orders below R1,500 may incur a delivery fee. Orders containing only one solar panel will incur an additional charge and will be requoted accordingly. If an item becomes unavailable after purchase, we will offer a full refund or an alternative product. 💬 Confirm stock or request a quotation via the WhatsApp button below with our sales team.
R16550.00
In stock at supplier. All prices include VAT. 🚚 Same-day delivery available for morning orders in Gauteng, with FREE delivery within 10 km. Orders below R1,500 may incur a delivery fee. Orders containing only one solar panel will incur an additional charge and will be requoted accordingly. If an item becomes unavailable after purchase, we will offer a full refund or an alternative product. 💬 Confirm stock or request a quotation via the WhatsApp button below with our sales team.
The REVOV E100 5.1kWh 51.2V Battery is a high-performance LiFePO₄ lithium battery designed for reliable, long-life energy storage in residential and small commercial solar, backup power and energy-storage systems.
With a 5.12kWh nominal energy capacity, 51.2V nominal voltage and a 1C charge and discharge capability, the E100 is designed to provide both dependable energy storage and high power delivery. Its lithium iron phosphate (LiFePO₄) chemistry provides a robust solution for applications requiring frequent cycling and long-term energy storage.
The E100 features an integrated LCD touchscreen display, allowing users to view battery performance and settings directly from the battery. Built-in protection against over-charge and over-discharge helps protect the battery during operation.
Its flexible installation design allows the battery to be positioned with the display facing forward and supports convenient wall-mounted or rack-mounted installation using compatible mounting accessories.
The battery can also be expanded by connecting up to 16 E100 units in parallel, providing a scalable storage solution for larger energy requirements.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | REVOV |
| Model | E100 |
| Product Type | LiFePO₄ Lithium Battery |
| Nominal Energy | 5.12kWh |
| Nominal Voltage | 51.2V |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Continuous Rating | 1C |
| Charge Capability | 1C continuous, subject to manufacturer limits |
| Discharge Capability | 1C continuous, subject to manufacturer limits |
| Maximum Parallel Units | 16 |
| Maximum Nominal Capacity | Approx. 81.92kWh |
| Display | Integrated LCD Touchscreen |
| Monitoring | Local battery performance and settings display |
| Protection | Over-Charge and Over-Discharge Protection |
| Cycle Life | Up to 6,000 cycles |
| Mounting Options | Wall Mount / Rack Mount |
| Orientation | Flexible installation orientation with display facing forward |
| Compatible Batteries | REVOV R100 and B100, subject to approved configuration |
| Warranty | 10 Years |
| Applications | Solar, Backup Power, Residential & Small Commercial |
Ideal Applications
The REVOV E100 is suitable for:
- Residential solar energy storage
- Hybrid inverter systems
- Backup power installations
- Solar self-consumption
- Off-grid energy systems
- Small commercial energy storage
- Load-shifting applications
- Essential-load backup
- Expandable battery banks
- Renewable-energy storage systems
Installation Considerations
The E100 should be installed by a suitably qualified installer according to REVOV’s installation requirements and applicable electrical regulations.
Before installation, verify:
- Inverter compatibility
- Battery voltage compatibility
- Maximum charge and discharge current
- Communication requirements
- Parallel battery configuration
- Appropriate DC protection
- Correct cable sizing
- Approved mounting equipment
- Adequate ventilation and installation clearances
When multiple batteries are installed, the batteries should be configured according to the manufacturer’s approved parallel installation procedure.
Warranty and Service Life
The REVOV E100 is supplied with a 10-year product warranty, subject to the manufacturer’s warranty terms and conditions.
The battery is also specified for up to 6,000 cycles, making it suitable for applications requiring frequent energy cycling.
Actual service life and cycle performance will depend on factors including operating temperature, charge and discharge rates, depth of discharge, installation conditions and system configuration.
Product Summary
The REVOV Lithium E100 5.1kWh 51.2V Battery 1C with Touchscreen is a scalable LiFePO₄ energy-storage solution designed for residential and small commercial solar and backup applications.
Its 5.12kWh capacity, 51.2V architecture, 1C continuous charge/discharge capability, integrated touchscreen, built-in protection and 6,000-cycle rating provide a combination of high performance, usability and long-term energy-storage capability.
With support for up to 16 units in parallel, the E100 can be expanded to approximately 81.92kWh of nominal storage capacity, making it suitable for installations that may need additional storage capacity as energy requirements grow.
Product: REVOV E100
Capacity: 5.12kWh
Voltage: 51.2V
Chemistry: LiFePO₄
C-Rate: 1C
Cycle Life: Up to 6,000 cycles
Maximum Parallel Units: 16
Display: LCD Touchscreen
Mounting: Wall / Rack
Warranty: 10 Years
Key Features
- 5.12kWh nominal energy capacity
- 51.2V nominal battery voltage
- LiFePO₄ lithium battery chemistry
- 1C continuous charge and discharge capability
- Supports up to 16 batteries in parallel
- Up to approximately 81.92kWh nominal capacity with 16 units
- Integrated LCD touchscreen display
- Battery performance and settings visible at a glance
- 10-year product warranty
- Up to 6,000 cycles
- Built-in over-charge protection
- Built-in over-discharge protection
- Flexible battery orientation
- Supports wall or rack mounting
- Compatible with REVOV R100 and B100 batteries, subject to manufacturer compatibility requirements
- Designed for residential and small commercial energy storage
LiFePO₄ Battery Technology
The REVOV E100 uses Lithium Iron Phosphate (LiFePO₄) battery chemistry, which is well suited to stationary energy-storage applications.
LiFePO₄ technology offers a combination of long cycle life, reliable operation and good thermal characteristics, making it suitable for batteries that are regularly charged and discharged as part of a solar or backup-power system.
The E100’s stated 6,000-cycle rating provides a long-cycle energy-storage platform for applications where the battery may be used frequently.
Actual cycle life depends on operating conditions, charging and discharge parameters, temperature, depth of discharge and system configuration.
1C Charge and Discharge Capability
The E100 is rated at 1C, allowing continuous charging and discharging at a rate corresponding to its nominal capacity, subject to the manufacturer’s specified electrical limits.
This high power capability makes the battery suitable for applications where the stored energy needs to be delivered quickly to an inverter and connected loads.
The actual power available to the system will depend on the inverter, battery-management system, operating temperature and other system limitations.
Scalable Battery Storage
The E100 can be connected in parallel to increase the total available energy-storage capacity.
Up to 16 units can be connected in parallel in a single string.
At the stated 5.12kWh nominal capacity per battery, a 16-battery configuration provides approximately:
16 × 5.12kWh = 81.92kWh
This scalability allows the battery system to be sized according to the energy requirements of the installation.
Multiple batteries should only be connected using the manufacturer’s approved configuration, communication equipment, cabling and protection requirements.
Integrated Touchscreen Display
One of the key features of the REVOV E100 is its integrated LCD touchscreen display.
The display provides convenient access to battery information and settings, allowing users and installers to view relevant battery performance information directly from the unit.
This local interface can simplify system checks and reduce the need for external monitoring equipment for basic battery-status information.
Flexible Installation
The E100 has been designed with installation flexibility in mind.
The battery can be oriented so that the front display is positioned conveniently for the installation environment. It can also be installed using compatible wall or rack mounting solutions.
This makes the battery suitable for a range of residential and small commercial energy-storage layouts.
Compatible mounting options include:
- Wall mounting
- Rack mounting
Mounting brackets, racks and other accessories may need to be purchased separately depending on the installation.
Built-In Battery Protection
The REVOV E100 incorporates internal battery protection functions designed to help protect the battery during operation.
These include:
- Over-charge protection
- Over-discharge protection
- Battery management and monitoring
The integrated protection system helps maintain operation within the battery’s specified limits.
Correct inverter configuration and installation remain essential for safe and reliable operation.
Solar Self-Consumption
The E100 is well suited to solar self-consumption systems.
During periods of high solar production, surplus energy can be stored in the battery. The stored energy can then be used when solar production decreases, such as in the evening or during periods of poor weather.
This can help increase the proportion of solar energy used within the property and reduce reliance on grid electricity.
Backup Power
When connected to a compatible inverter, the E100 can provide stored energy during grid interruptions.
Typical backup applications can include:
- Lighting
- Refrigeration
- Internet and networking equipment
- Security systems
- Computers and office equipment
- Television and entertainment equipment
- Selected household appliances
- Essential-load circuits
Backup runtime depends on the connected load, inverter efficiency, battery configuration and operating conditions.
Compatibility with R100 and B100 Batteries
The REVOV E100 is stated to be compatible with REVOV R100 and B100 batteries, providing additional flexibility when designing or expanding an energy-storage system.
Compatibility should be confirmed against the latest REVOV documentation before combining different battery models. Battery firmware, voltage specifications, communication requirements and approved parallel configurations should be checked before installation.
