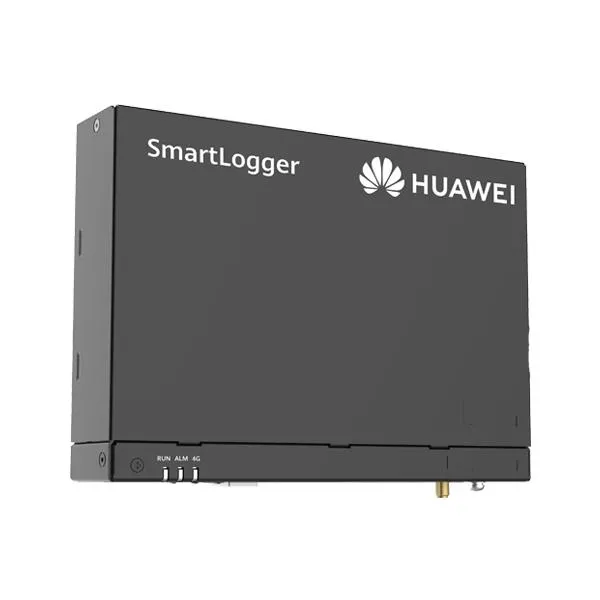

    Huawei SmartLogger 3000 A03EU Solar Smart Monitor & Data Logger with 4G/MBUS 02312SCU-003

    The Huawei SmartLogger 3000A03EU is designed to manage up to 80 devices. To this end, this model provides a wide range of communication channels. The module supports RS485, MBUS, Ethernet, and 2G, 3G, and 4G cellular standards. On-site commissioning is completed safely, quickly and easily. To do this, the Huawei SmartLogger 3000A03EU is first mounted. With its dimensions of 225 x 160 x 44 mm at a weight of only 2 kg, a suitable place is available almost everywhere. Due to the IP20 protection class, the housing is well protected against environmental influences: The operating temperature may be -40 °C to + 60 °C, a relative humidity of 5 % to 95 % is tolerated.

    After installation, commissioning follows – this can be done effortlessly with a notebook or directly with the Huawei Fusion Solar App (WLAN). The installer is guided by the software, and three LEDs on the housing indicate the status of the data logger. After installation, the device works with high efficiency and offers numerous intelligent control options. The internal web server is also already installed. Most of the necessary accessories for the Huawei SmartLogger 3000A03EU and its installation are included in the delivery, including the patch and power cables. The device typically requires 8 watts (maximum 15 watts).

    • Max. 80 manageable devices
    • Installation via FusionSolarApp or notebook
    • Integrated web server
    • Communication via RS485, MBUS, Ethernet and 4G

    SMART

    • IEC60870-5-104 for connections to third-party monitoring systems;
    • USB and embedded web for data reading and software upgrade;
    • Automatically detecting equipment and assigning RS485 addresses;
    • Remote control of active & reactive power

    SIMPLE

    • Up to 80 inverters feeding into one Smart Logger;
    • Up to 30 devices per RS485 bus;
    • Easy to install on walls, tabletops and rails mounting

    RELIABLE

    • Max. reliable communication range of 1000m;
    • Remote configuration, automatic set-up of RS485 addresses
    • Now with built in SPD
    • Compatible with older Huawei -V1 inverter range and newer -M0, -H1 inverter range.
    • 3G/4G router built in – NOT IN UNITS OFFERED IN SOUTH AFRICA .

    UK ONLY: PLEASE NOTE NET ECO MONITORING SYSTEM IS NO LONGER AVAILABLE IN THE UK. SMARTLOGGER DEVICE CAN NO LONGER BE USED TO ACCESS HUAWEI’S FREE OF CHARGE MONITORING SYSTEM. Might come supplied with EU plug.
