Solis 80kW 5G 3 Phase 9x MPPT DC
Out of stock with Supplier & Manufacturer ETA is 4-8 Weeks, as soon as the stock is available the system will be updated. If needed you can place backorder with our sales team to get stock when is available. Below you can click the button to request quotation or ask to be emailed when stock is available.
R101200.00 R157300.00
Sold out!
Email when stock available
80kW three-phase series string inverter adopt 9 MPPT design to provide a more flexible configuration scheme with a smaller environmental impact rate and higher generation efficiency. Max. 16A per string, 150% DC overloading capacity，remote and local intelligent IV scan function.
Inverters – Main Units
- Rating: 80,000W
- Phases: 3

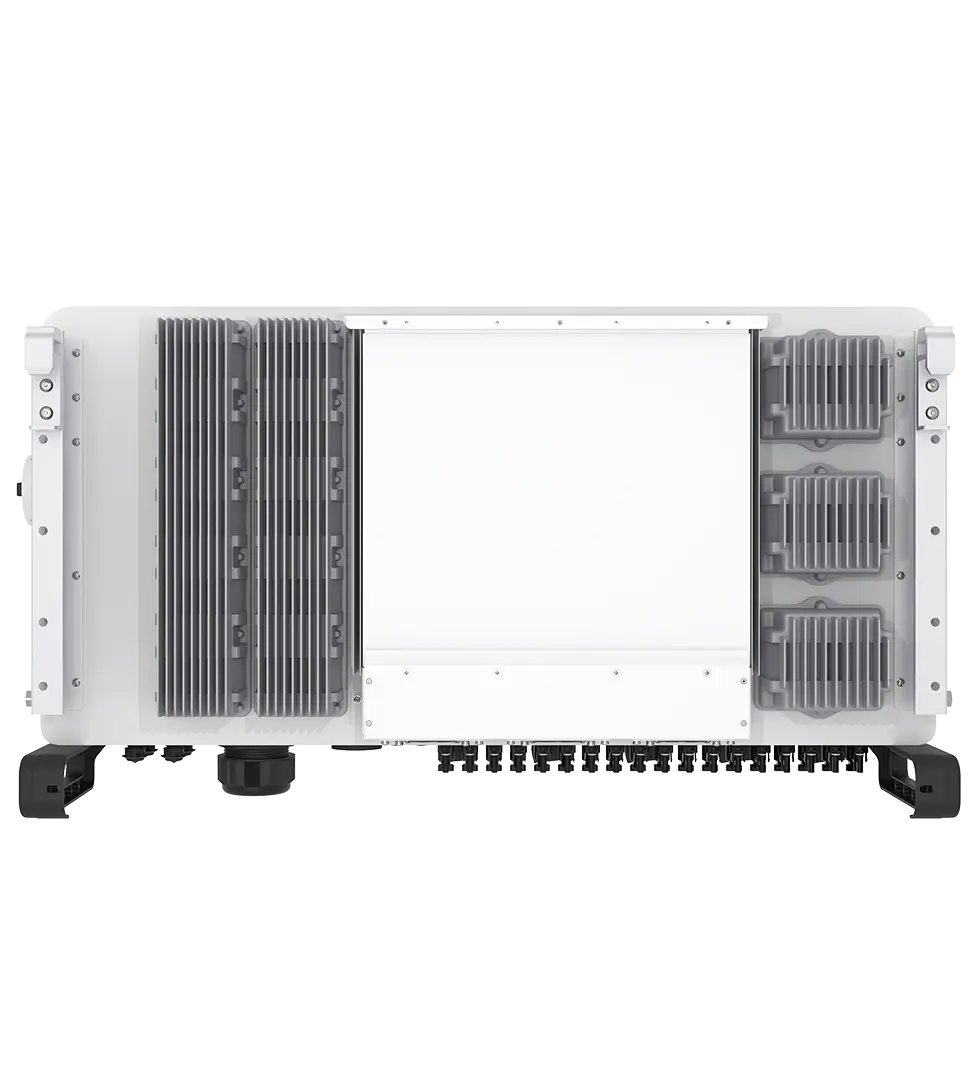

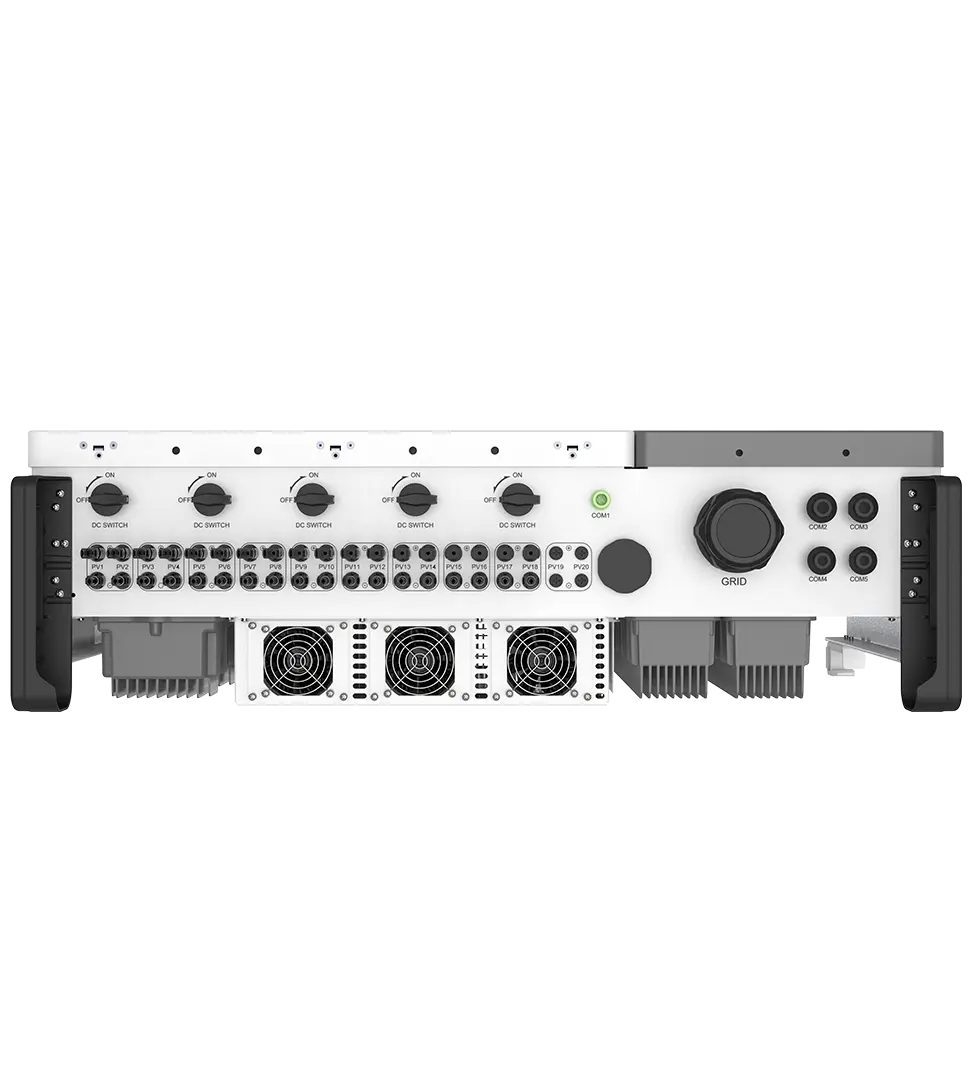

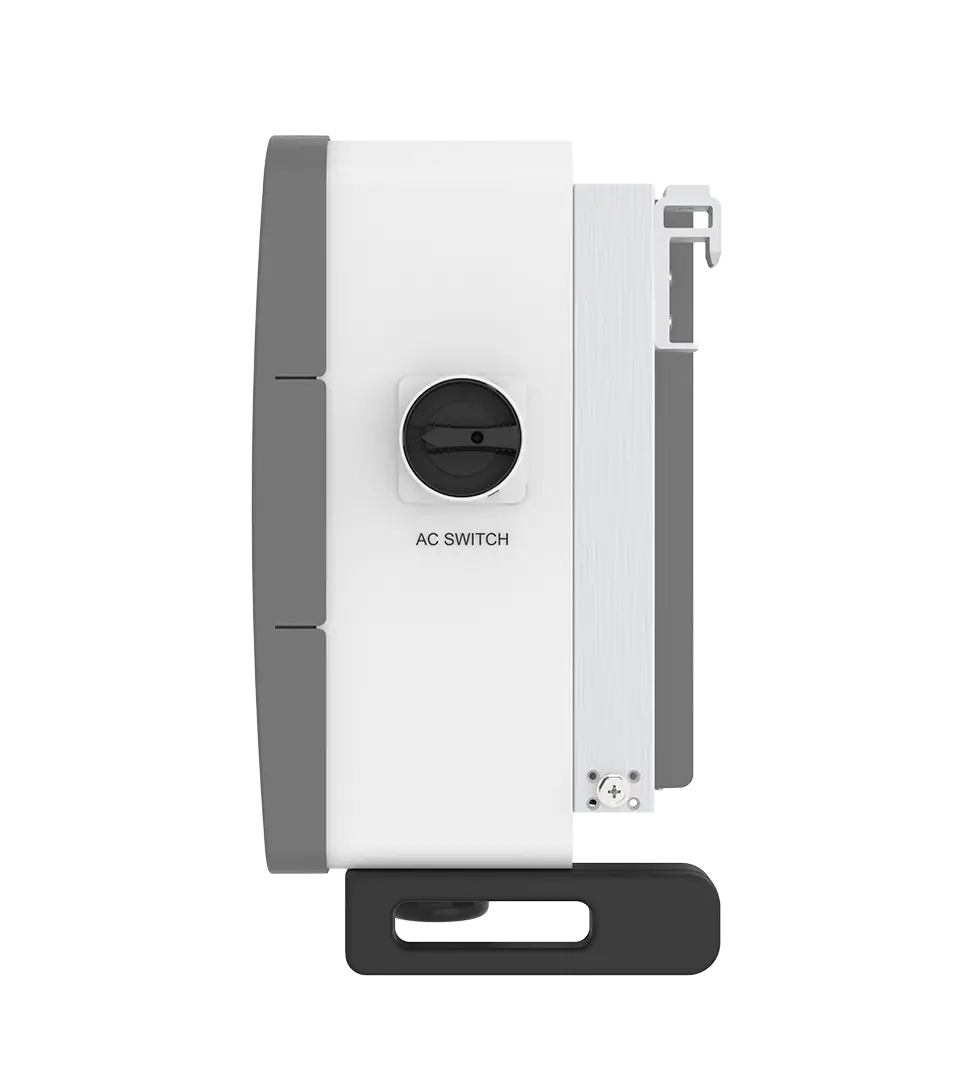

Solis-80K-5G 3phase Inverter
Product Features
- Max. 13A per string (26A per MPPT), 150% DC overloading capability
- 9 individual MPPT, lower mismatch loss
- Efficient logic algorithm, over 99% max. Efficiency
- String monitoring, shorter O&M time
- Remote & local intelligent IV scan function
- Leakage current repression technology
- Volt-watt work mode integrated
- DC input reverse alarm
- Optional anti-PID function integrated
- Reactive power compensation function
- Type ll surge protection for DC and AC
- Integrated AFCI (DC arc-fault circuit protection)
Installer Notes:
SA: View City of Cape Town’s approved inverters.
Datasheet_Solis-(80-110)K-5GSolis_Inveter_Warranty_EuropeSolis_certificate_EN 50549-1_75-125K-5G_Europe_V01
| Weight | 85 kg |
|---|
