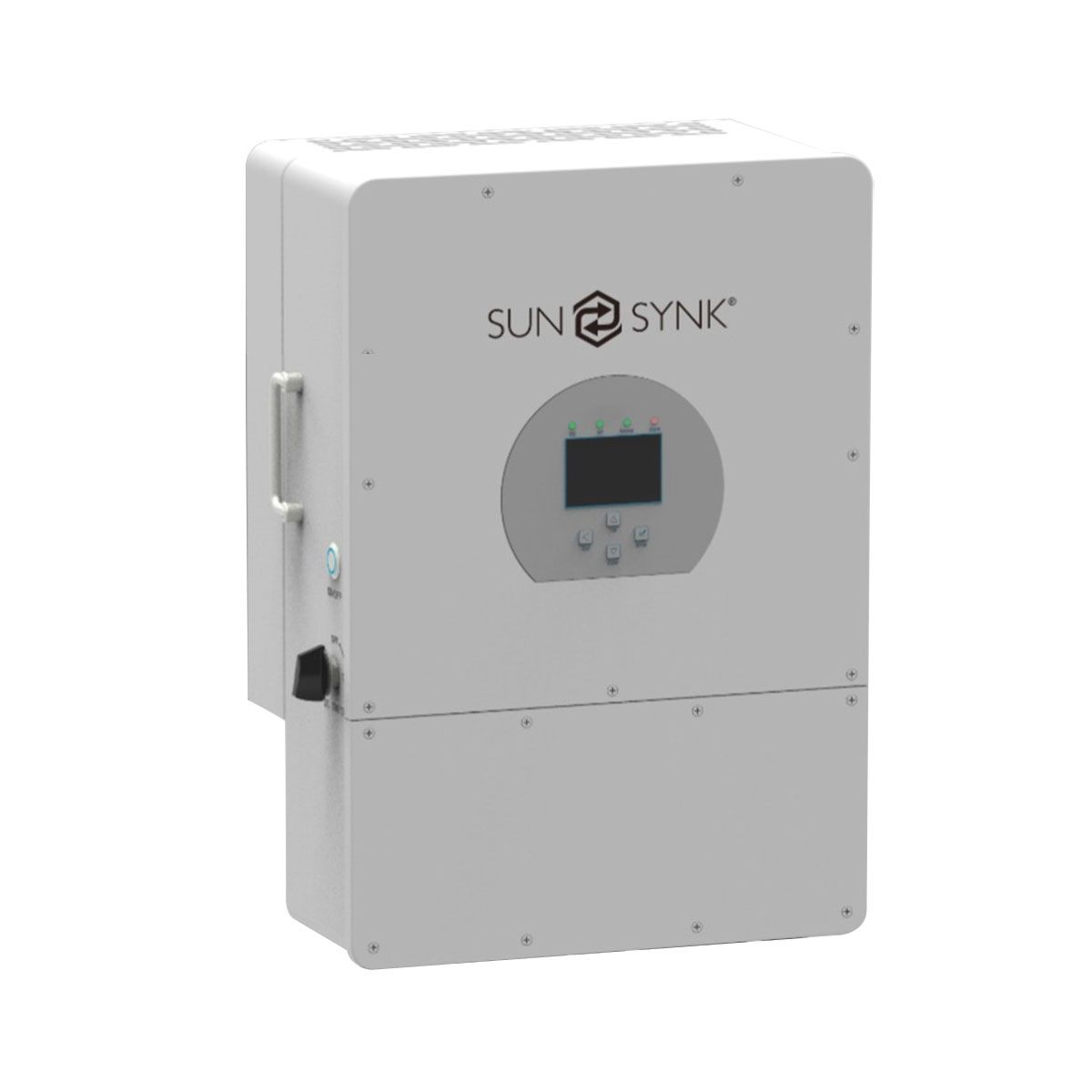

Sunsynk 12kW Three Phase Hybrid PV Inverter 48v + Wifi Dongle

Interactive

• Easy and simple to understand LCD display
• Supporting Wi-Fi or GSM monitoring
• Visual power flow screen
• Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker
• Smart settable 3-stage MPPT charging for optimised battery performance
• Auxiliary load function
• Up to 4 inverters in parallel

Compatible

• Compatible with mains electrical grid voltages or power generators
• Compatible with wind turbines
• 230V/400V Three-phase Pure Sinewave Inverter
• Self-consumption and feed-in to the grid
• Auto restart while AC is recovering
• Maximum charging/discharging current of 190A (8kW), 210A (10kW), and 240A (12kW)
• DC and AC couple to retrofit existing solar system
• Compatible with a 48V low-voltage battery

Configurable

• Fully programmable controller
• Programmable supply priority for battery or grid
• Programmable multiple operation modes: on-grid/off-grid & UPS
• Configurable battery charging – current/voltage based on applications by LCD setting
• Configurable AC / solar / generator charger priority by LCD setting
• 6 time periods for battery charging/discharging

Secure

• Overload/over-temperature/short-circuit protection
• Smart battery charger design for optimised battery protection
• Limiting function installed to prevent excess power overflow to grid
• Isolation transformer design

Applications

• Marine (vessel power management)
• Power shedding (home/office/factory)
• UPS (fuel-saving systems)
• Remote locations with solar and wind generators
• Building sites
• Telecommunication
