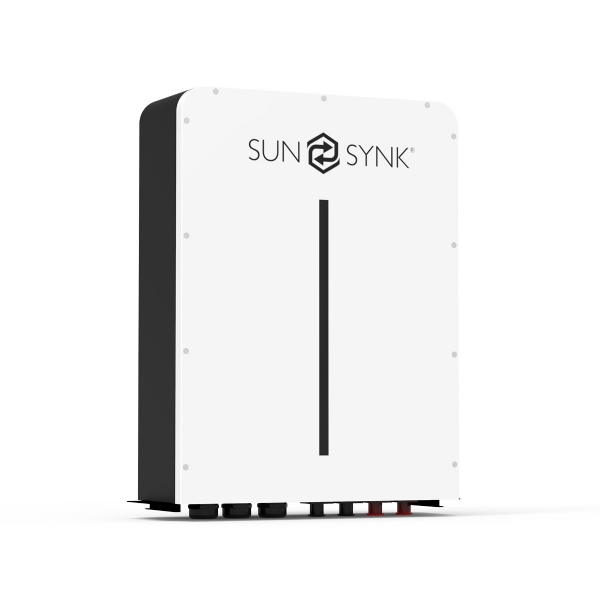

Sunsynk Battery LFP Wall Mount 5.12kWh 51.2V IP65
In stock at supplier. All prices include VAT. 🚚 Same-day delivery available for morning orders in Gauteng, with FREE delivery within 10 km. Orders below R1,500 may incur a delivery fee. Orders containing only one solar panel will incur an additional charge and will be requoted accordingly. If an item becomes unavailable after purchase, we will offer a full refund or an alternative product. 💬 Confirm stock or request a quotation via the WhatsApp button below with our sales team.
R23933.00
In stock at supplier. All prices include VAT. 🚚 Same-day delivery available for morning orders in Gauteng, with FREE delivery within 10 km. Orders below R1,500 may incur a delivery fee. Orders containing only one solar panel will incur an additional charge and will be requoted accordingly. If an item becomes unavailable after purchase, we will offer a full refund or an alternative product. 💬 Confirm stock or request a quotation via the WhatsApp button below with our sales team.
The series is especially suitable for applications of high power, limited installation space, restricted load-bearing and long life cycle. The battery has a built-in management system, which can manage and monitor cell information, including voltage, current and temperature. What’s more, BMS can balance cell charging and discharging to extend cycle life.
Multiple batteries can connect in parallel to expand capacity and power for larger capacity and longer power supporting duration requirements.
| Battery Chemistry | LiFePO4 | |
| Capacity (Ah) | 100 | |
| Scalability | Max 32 pcs in parallel (163.8kWh) | |
| Nominal Voltage | 51.2 | |
| Operating Voltage | 43.2 – 57.6 | |
| Energy (kWh) | 5.12 | |
| Usable Energy (kWh) [1] | 4.61 | |
| Charge / Discharge Current (A) | Recommend [2] Max [2] Peak [2 mins, 25°C] |
50 100 150 |
| Recommend Depth of Discharge | 90% | |
| Dimension (w/h/d) mm | 440 x 640 x 140 | |
| Weight Approximate (kg) | 50 | |
| Master LED Indicator | 5 LED (20%-100%) 3 LED (working, alarming, protecting) |
|
| IP Rating of Enclosure | IP65 | |
| Working Temperature | Charge: 0°C – 55°C Discharge: -20°C – 55°C |
|
| Storage Temperature | 0°C – 35°C | |
| Humidity | 5% – 95% | |
| Altitude | ≤2000m | |
| Cycle Life | ≥6000 (25±2°C, 0.5C, 70%EOL) | |
| Installation | Wall Mounted or 19-inch standard cabinet | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 5 years | |
| Life Cycle Power During Warranty Period [3] | 16MWh@70%EOL | |
| Certification | IEC62619, CE, UN38.3 | |
[1] DC Usable Energy, test conditions: 90% DOD, 0.5C charge & discharge at 25°C. System usable energy may vary due to system configuration parameters.
[2] The current is affected by temperature and SOC.
[3] The warranty is due whichever reached first of warranty period or life cycle power.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ITnerfricaShop and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Related products
-
Sunsynk
Sunsynk HV 61.44kWh battery pack
In order to receive free shipping, customers must be within a 30km delivery radius in Gauteng. No more Collections, We do Delivery Only for all our Stock. Orders for solar panels must include a minimum of 4 units. Extra fees may be charged for deliveries to remote locations and will be provided upon request.
SKU: SUN-61.44-HV -
Eenovance, Sunsynk

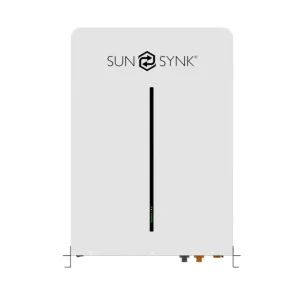

Eenovance Battery LFP Wall Mount 5.32kWh 51.2V (Ex Sunsynk Brand)
