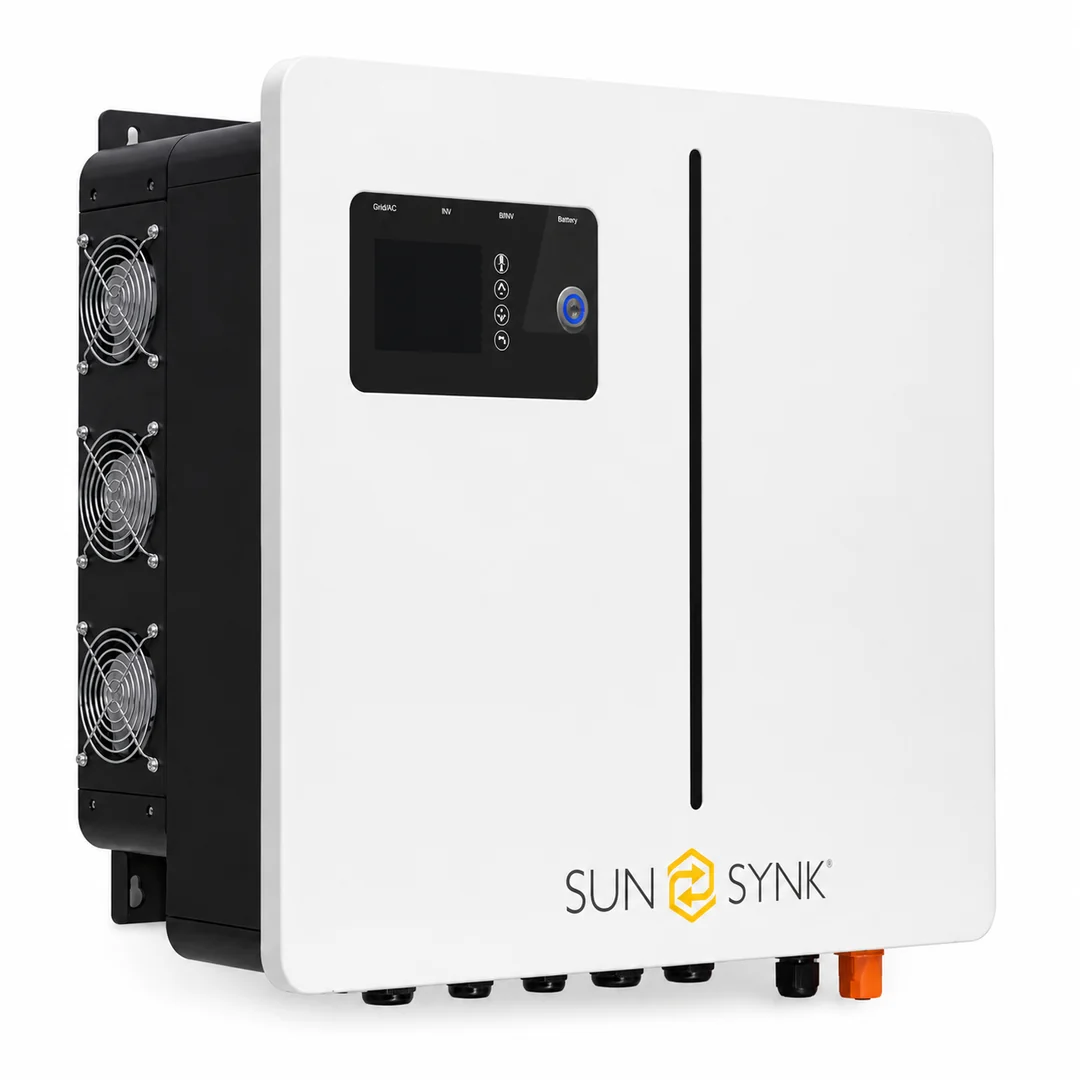

Sunsynk Lynks Pro 2nd Generation 8kW 48Vdc Single-Phase IP65 Hybrid Inverter

Sunsynk Lynks Pro 2nd Generation 8kW 48Vdc Single-Phase IP65 Hybrid Inverter

The Sunsynk Lynks Pro 2nd Generation 8kW Hybrid Inverter (SUN-LYNKS-PRO-8.0) is a powerful and versatile energy-management solution designed for residential and commercial solar, battery-storage and backup-power applications. With an 8kW rated output, 12kWp maximum DC input, dual MPPT technology and IP65 ingress protection, it provides reliable performance in both indoor and suitable outdoor installations.

The Lynks Pro 2nd Generation supports conventional solar PV systems, wind turbines and micro-inverters, giving installers flexibility when designing renewable-energy systems. Its dual MPPT architecture provides independent solar tracking, while the 28A rated input current per MPPT makes the inverter suitable for modern high-current PV modules.

A built-in touchscreen LCD, integrated DC switch, Wi-Fi monitoring dongle and CT clamp provide convenient system control, monitoring and energy-management functionality. The inverter can also be configured for three-phase applications, making it suitable for larger and more demanding installations.

Key Features

• 8kW rated AC output
• 12kWp maximum DC/PV input
• Dual MPPT with 28A rated input current per MPPT
• 97.6% Euro efficiency
• 16kW one-second surge capability
• Touchscreen LCD display
• Supports three-phase configuration
• IP65-rated enclosure suitable for outdoor applications
• Compatible with solar PV, wind turbines and micro-inverters
• Wi-Fi monitoring dongle included
• CT clamp included as standard
• Integrated DC switch
• Transformerless design
• 5-year standard warranty

Technical Specifications

Compatible Battery Systems

Warranty Registration

Sunsynk installations must be registered for full warranty activation. Equipment warranty registration must take place within 7 days of commissioning the project. Failure to register the equipment within the required period may result in the warranty being void.

Sunsynk Warranty Registration

Installation & Safety

This product must be installed by a qualified electrician or suitably qualified technician. All installations must comply with applicable local electrical wiring regulations, safety requirements and relevant standards.

Incorrect installation, configuration or commissioning can result in equipment damage, system malfunction or safety hazards. ITnerfricaShop will not be held liable for product malfunctions or damage resulting from incorrectly installed or configured systems.

Important Compatibility Notice: The Sunsynk Lynks Pro 2nd Generation IP65 is not compatible with the Sunsynk Lynks IP41 range. Ensure that all inverter, battery and system components are confirmed compatible before installation.
