Canadian Solar HiKu6 455W Mono PERC Solar Panel
In Stock, Note: All of our prices are Including VAT. Same day FREE DELIVERY (10km) distance in Gauteng | Delivery Only. Additionally, a delivery fee will be charged for any orders under or less than R1500. If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, click the WhatsApp button below to chat with the team.
In order to receive free shipping, customers must be within a 30km delivery radius in Gauteng. No more Collections, We do Delivery Only for all our Stock. Orders for solar panels must include a minimum of 4 units. Extra fees may be charged for deliveries to remote locations and will be provided upon request.
R1380.00
In Stock, Note: All of our prices are Including VAT. Same day FREE DELIVERY (10km) distance in Gauteng | Delivery Only. Additionally, a delivery fee will be charged for any orders under or less than R1500. If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, click the WhatsApp button below to chat with the team.
Mechanical Data
- Cell Type: Mono-crystalline
- Cell Arrangement: 120 [2 × (10 × 6)]
- Dimensions: 1903 × 1134 × 30 mm
- Weight: 24.2 kg
- Front Cover: 3.2 mm tempered glass with anti-reflective coating
- Frame: Anodized aluminium alloy
- Junction Box: IP68, 3 bypass diodes
- Cable: 4 mm² (IEC), 12 AWG (UL)
- Connector: T6, MC4, MC4-EVO2, or MC4-EVO2A
- Cable Length (Including Connector):
- Portrait: 410 mm (+) / 290 mm (-)
- Landscape: 1100 mm*
Electrical Data STC*
- Model: CS6L-455MS
- Nominal Max. Power (Pmax): 455 W
- Operating Voltage (Vmp): 34.6 V
- Operating Current (Imp): 13.17 A
- Open Circuit Voltage (Voc): 41.2 V
- Short Circuit Current (Isc): 13.95 A
- Module Efficiency: 21.1%
- Operating Temperature: -40°C to +85°C
- Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
- Module Fire Performance:
- TYPE 1 (UL 61730 1500V)
- TYPE 2 (UL 61730 1000V)
- CLASS C (IEC 61730)
- Max. Series Fuse Rating: 25 A
- Application Classification: Class A
- Power Tolerance: 0 ~ +10 W
Key Features:
- Nominal Max. Power (Pmax): 334 W
- Operating Voltage (Vmp): 32.1 V
- Operating Current (Imp): 10.41 A
- Open Circuit Voltage (Voc): 38.6 V
- Short Circuit Current (Isc): 11.18 A
Related products
-
Canadian Solar

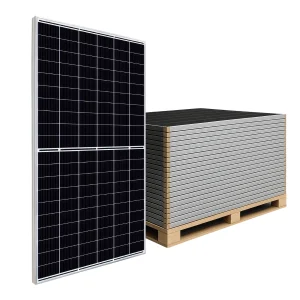

Canadian Solar HiKu6 455W Mono PERC Solar Panel Pallet of 35
