Deye 20KW Three Phase 48V Low Voltage Hybrid Inverter Inc Wifi Dongle

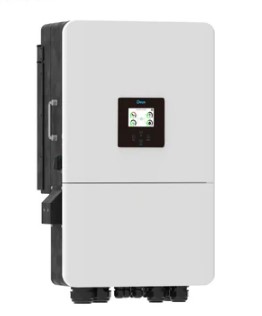

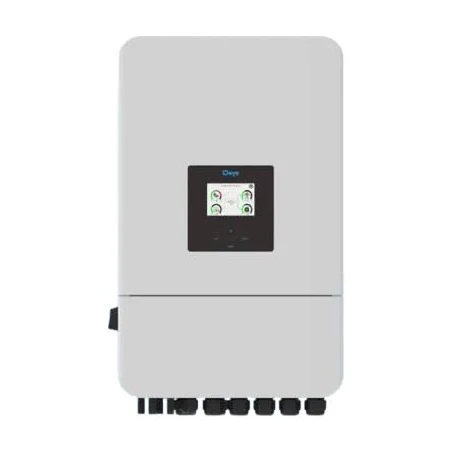

The Deye 20kW Three-Phase Low-Voltage Hybrid Inverter () is an advanced solution for both residential and commercial solar power systems. This inverter is designed to provide seamless integration with low-voltage battery systems and offers outstanding performance for on-grid and off-grid applications.

20kw Deye Low-Voltage Hybrid Inverter Key Features:

• Maximum Charging/Discharging Current: 350A, ensuring rapid and efficient energy transfer.
• Battery Compatibility: Supports 48V low-voltage batteries with transformer isolation for enhanced safety.
• Parallel Operation: Supports up to 10 inverters in parallel for scalable energy solutions.
• AC Coupling: Easily retrofits into existing solar systems.
• Flexible Battery Management: Six time periods for battery charging and discharging.
• Unbalanced Output Capability: 100% unbalanced output per phase with a maximum output of up to 50% rated power.
• Generator Support: Can store energy from diesel generators.

20kw Deye Low-Voltage Hybrid Inverter Technical Specifications:

• Maximum DC Input Power: 26,000W
• Maximum DC Input Voltage: 800V
• MPPT Voltage Range: 160-650V
• Rated AC Output Power: 20,000W
• Peak Off-Grid Power: Up to 40,000W for 10 seconds
• Efficiency: Max efficiency of 97.6% and MPPT efficiency above 99%
• Grid Regulation Compliance: Meets IEC, NRS, G99, VDE-AR-N 4105, and other international standards.
• Cooling System: Intelligent air cooling for optimal performance under varying conditions.
• Ingress Protection: IP65 rated, ensuring protection against dust and water.
• Communication Interfaces: WIFI, RS485, and CAN for seamless monitoring and control.
• Warranty: 5 to 10 years depending on installation site.
