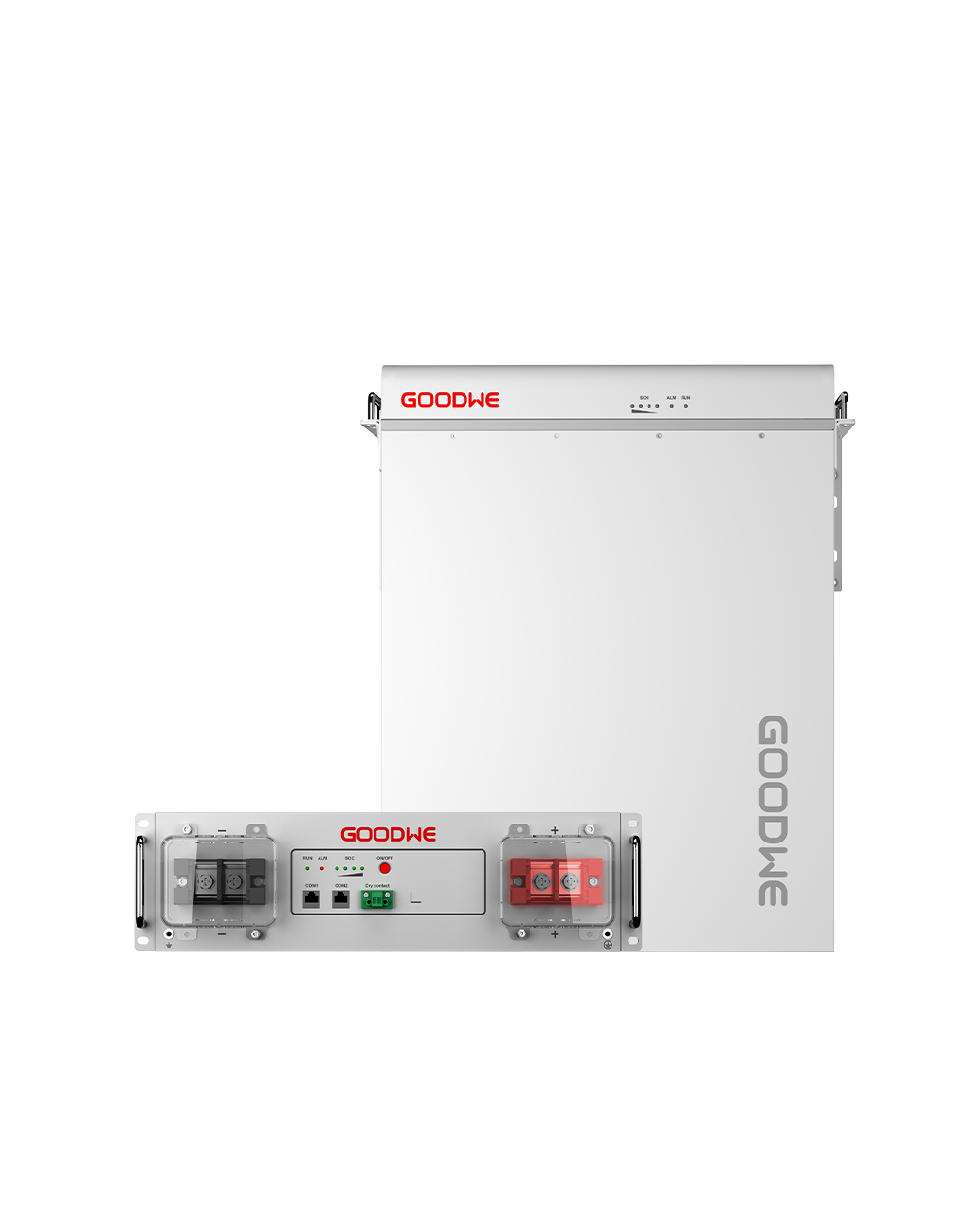

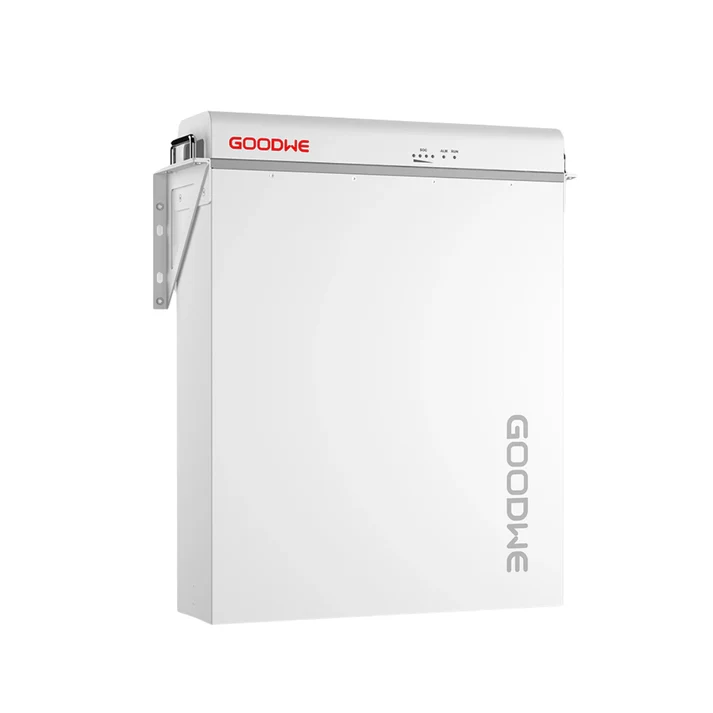

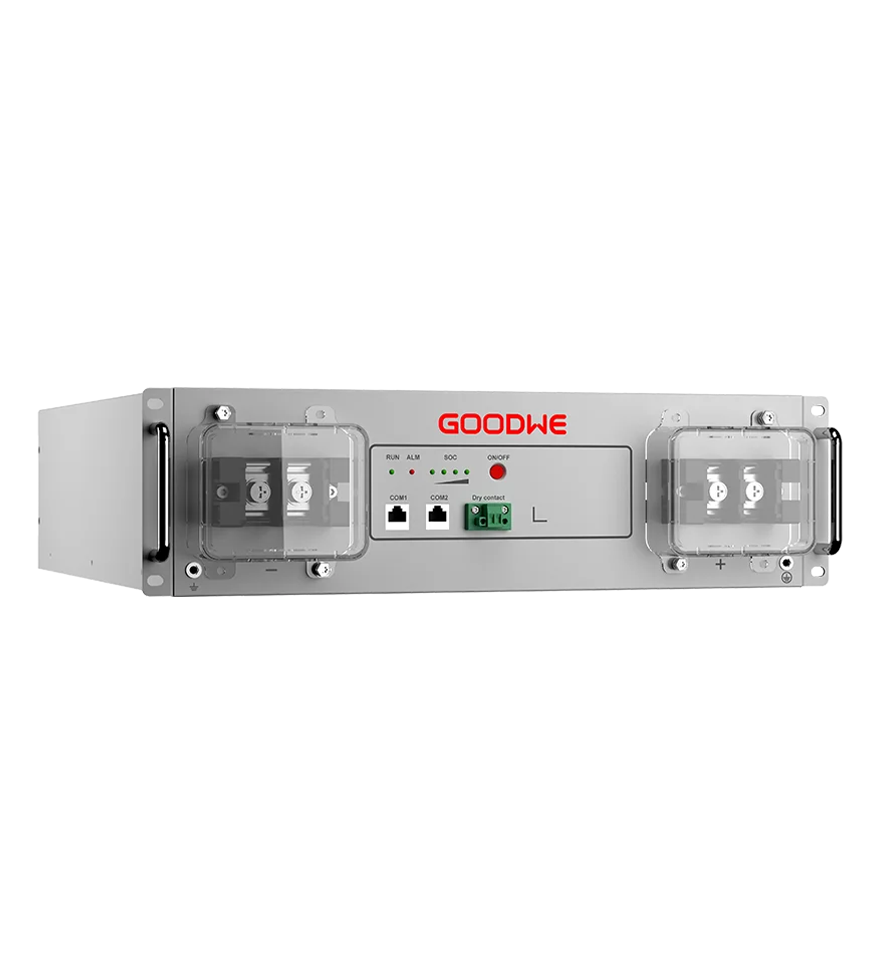

GoodWe Lynx A G3 5kW Low Voltage LiFePO4 Battery
In Stock, Note: All of our prices are Including VAT. Same day FREE DELIVERY (10km) distance in Gauteng | Delivery Only. Additionally, a delivery fee will be charged for any orders under or less than R1500. If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, click the WhatsApp button below to chat with the team.
In order to receive free shipping, customers must be within a 30km delivery radius in Gauteng. No more Collections, We do Delivery Only for all our Stock. Orders for solar panels must include a minimum of 4 units. Extra fees may be charged for deliveries to remote locations and will be provided upon request.
R15201.00
In Stock, Note: All of our prices are Including VAT. Same day FREE DELIVERY (10km) distance in Gauteng | Delivery Only. Additionally, a delivery fee will be charged for any orders under or less than R1500. If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, click the WhatsApp button below to chat with the team.
GoodWe’s Lynx A G3 Series is a reliable low-voltage LFP battery designed for residential energy storage. It helps optimize solar self-consumption and provides dependable backup power. Featuring high energy density, a built-in Battery Management System, and support for up to 30 units in parallel, it’s a compact, scalable solution with long cycle life—perfect for lasting home energy efficiency.
Product Features:
- Remote diagnosis and firmware updates via compatible inverter
- Reliable lithium iron phosphate (LFP) battery cells with high cycle stability
- Scalable design supports up to 30 units in parallel (up to 150kWh total capacity)
- Long battery life with over 6000 cycles at 70% end-of-life (EOL) capacity
Specifications:
- Nominal Battery Energy: 5.12 kWh
- Usable Energy: 5 kWh
- Cell Type: LFP (LiFePO₄)
- Operating Voltage Range: 43.20 ~ 58.24 V
- Nominal Charge Current: 60 A
- Max. Continuous Charge Current: 90 A
- Nominal Discharge Current: 100 A
- Max. Continuous Discharge Current: 150 A
- Max. Pulse Discharge Current: <200 A (30 seconds)
- Max. Continuous Discharging Power: 7200 W
- Communication: CAN
- Operating Temperature:
- Charge: 0°C < T ≤ 55°C
- Discharge: -20°C < T ≤ 55°C
- Max. Storage Time: 12 months (maintenance-free)
- Max. Operating Altitude: 4000 m
- Weight: 44 kg
- Dimensions (W × H × D):
- Core part: 442 × 133 × 520 mm
- Maximum: 483 × 133 × 559 mm
- Ingress Protection Rating: IP20
- Applications: On Grid / On Grid + Backup / Off Grid
- Scalability: Up to 30 units in parallel (150 kWh total)
- Hand to hand / Combiner box / Busbar supported
- Mounting Method: 19-inch standard rack, floor-mounted, wall-mounted
- Round-trip Efficiency: ≥96%
- Cycle Life: >6000 cycles @ 25 ± 2°C, 0.5C, 70% SOH, 90% DOD
Certifications:
- Safety: IEC62619, IEC63056, N140
- EMC: EN IEC 61000-6-1 / -6-2 / -6-3 / -6-4
- Transportation: UN38.3, ADR
- Environmental: RoHS
a52cc0a3312aefd47ad1ddc28f46ac01ab44e9575fc196cae13ed5204697137f (1)
| Weight | 44 kg |
|---|---|
| Dimensions | 483 × 133 × 559 mm |
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ITnerfricaShop and its Supplier will not be held liable for any product malfunctions as a result of incorrectly installed systems.
