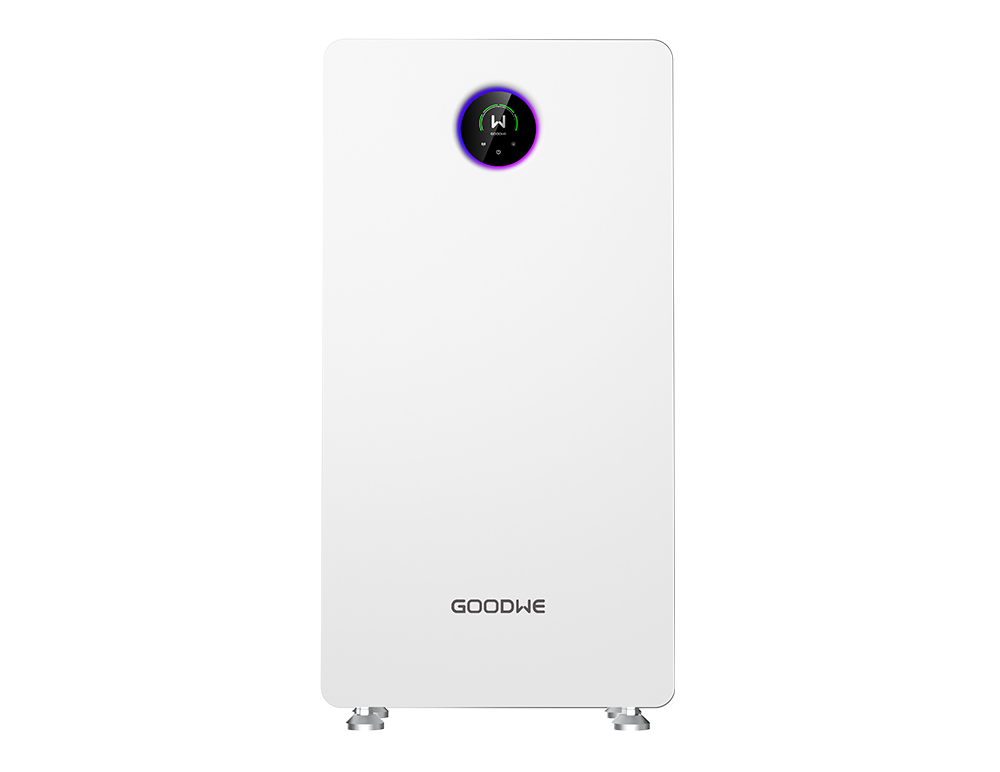

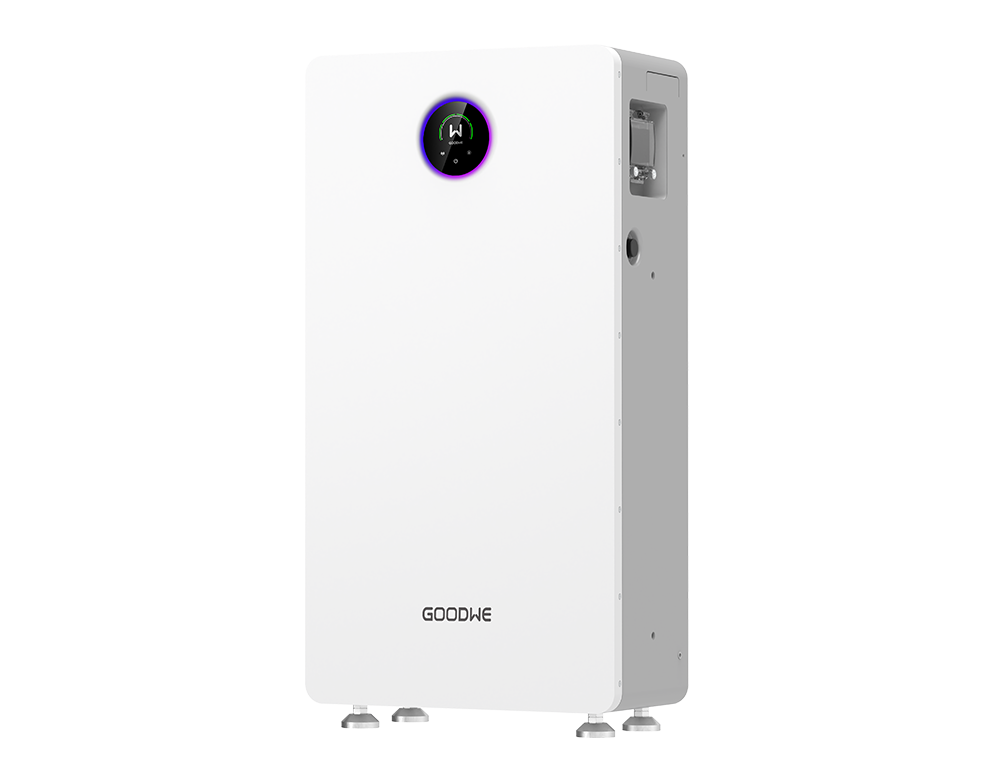

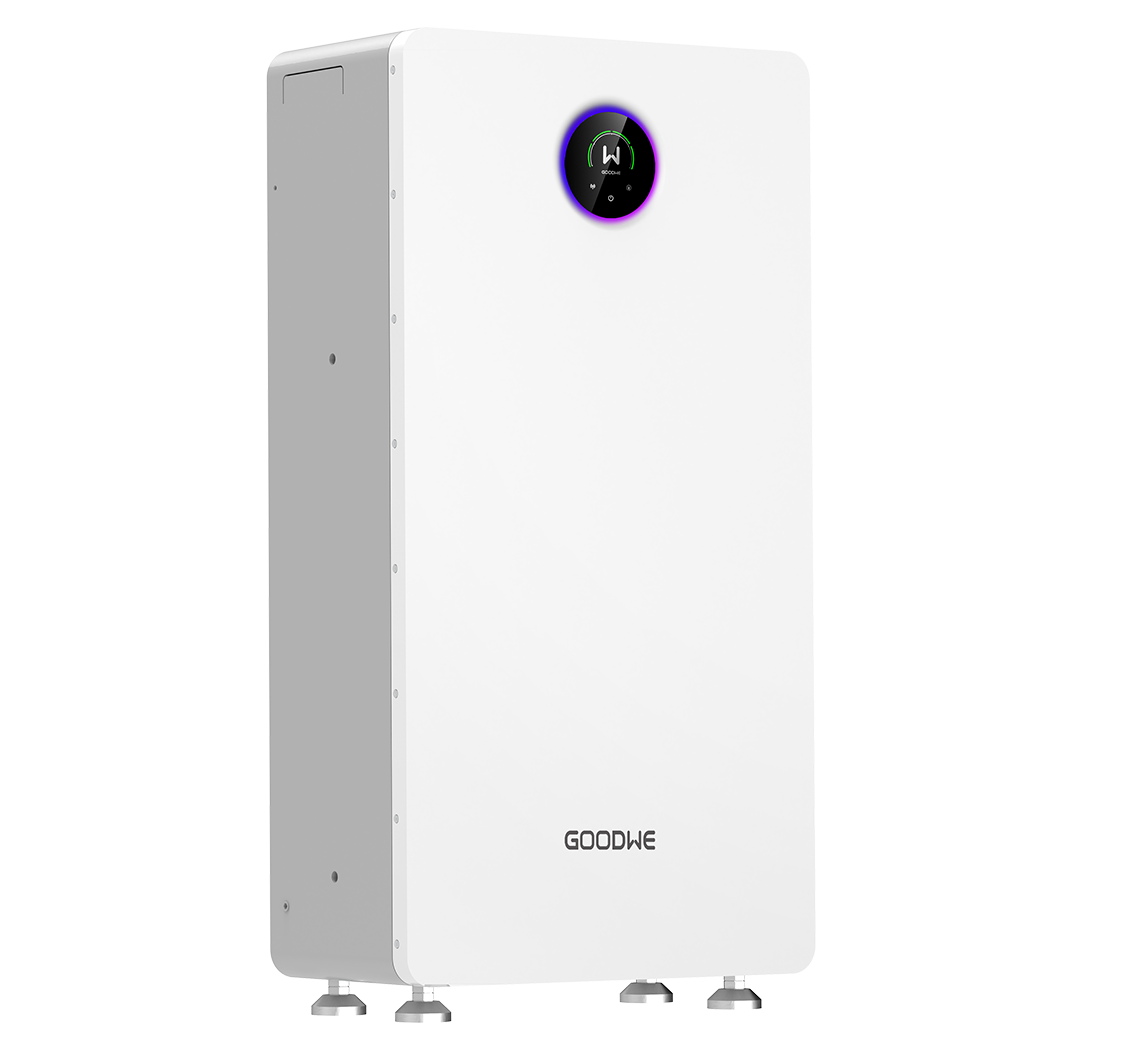

The GoodWe Lynx A G4 Series 16kWh Low Voltage Battery is a high-capacity energy storage solution designed for residential and small commercial solar applications. With 16.1kWh nominal capacity, high-density 314Ah LiFePO₄ cells, and a 51.2V nominal voltage, the Lynx A G4 provides reliable energy storage for solar self-consumption, peak-demand management and backup power.

Designed to work with GoodWe low-voltage hybrid inverters, the Lynx A G4 combines high performance, advanced safety and flexible installation in a compact battery system. It supports continuous charging at up to 0.5C and discharging at up to 0.63C, with a maximum system discharge current of 200A.

Key Features

• 16.1kWh nominal energy capacity
• ≥14.9kWh usable energy
• 51.2V low-voltage battery system
• High-capacity 314Ah LiFePO₄ cells
• Up to 0.5C continuous charging
• Up to 0.63C continuous discharging
• Maximum continuous charge current: 157A
• Maximum continuous discharge current: 200A
• Maximum output power: 10kW
• Peak output power: 16kW for 15 seconds
• IP65 protection against dust and water ingress
• Long service life of up to 8,000–10,000 cycles, depending on specified test/market configuration
• Operating temperature range down to -20°C
• Built-in circuit breaker
• Thermal-electric separation and cell-level thermal isolation
• Optional aerosol fire suppression system
• Floor-mounted or wall-mounted installation
• Up to 30 units in parallel for scalable energy storage
• Dual-terminal daisy-chain design for simplified battery connections
• Optional wheels for easier transportation and installation
• CAN communication
• Compatible with GoodWe low-voltage inverter solutions

Specifications

Specifications are based on GoodWe’s published Lynx A G4 documentation and may vary by market or product revision.

Advanced Safety

The Lynx A G4 incorporates multiple layers of protection to improve battery safety and reliability. The system features IP65 protection, thermal-electric separation and cell-level thermal isolation. An optional aerosol fire-suppression system provides an additional layer of active protection.

The integrated circuit breaker and current-limiting technology also simplify installation and support safer system expansion.

Scalable Energy Storage

For larger energy requirements, the Lynx A G4 can support up to 30 units connected in parallel, allowing the battery bank to be expanded as energy demand increases. Its dual-terminal daisy-chain design reduces wiring complexity and eliminates the need for a separate busbar in the supported configuration.

Ideal Applications

The GoodWe Lynx A G4 16kWh battery is suitable for:

• Residential solar energy storage
• Solar self-consumption
• Backup power during load shedding
• Peak-demand energy management
• High-energy household applications
• Small commercial energy storage
• New solar installations
• Expansion of existing compatible GoodWe systems

Reliable Solar Energy Storage

With its 16.1kWh capacity, 51.2V architecture, 314Ah LiFePO₄ cells, IP65 protection and scalable design, the GoodWe Lynx A G4 16kWh provides a robust solution for storing solar energy and delivering dependable backup power when it is needed most.
