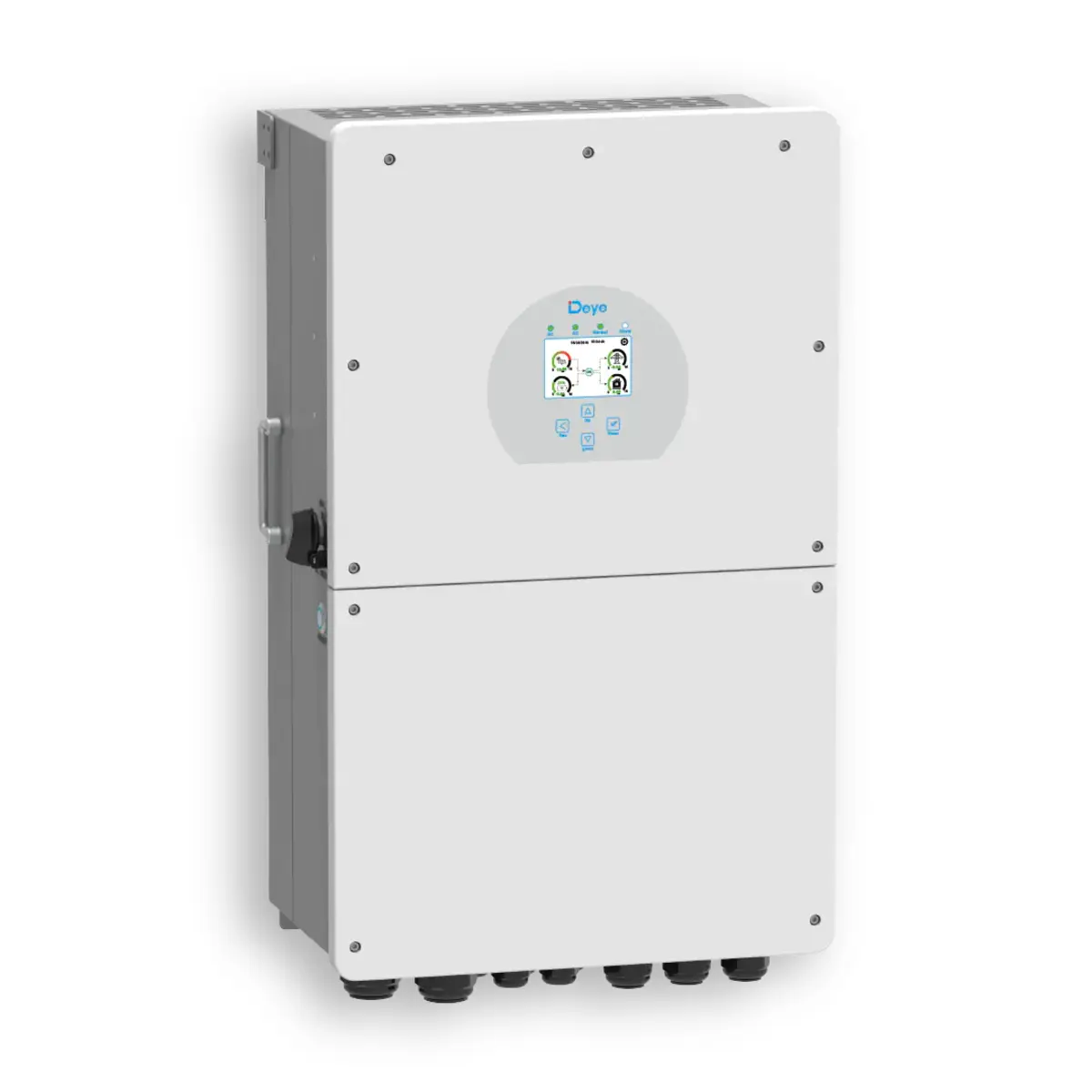

Deye 16kW 48V Single Phase Hybrid Inverter
In Stock, Note: All of our prices are Including VAT. Same day FREE DELIVERY (10km) distance in Gauteng | Delivery Only. Additionally, a delivery fee will be charged for any orders under or less than R1500. If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, click the WhatsApp button below to chat with the team.
R40800.00
In Stock, Note: All of our prices are Including VAT. Same day FREE DELIVERY (10km) distance in Gauteng | Delivery Only. Additionally, a delivery fee will be charged for any orders under or less than R1500. If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, click the WhatsApp button below to chat with the team.
Deye 16KW 48V Single Phase Hybrid Inverter hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via this product. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication.
Smart Monitoring Platform – Remotely shutdown function
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 290A
- Support storing energy from diesel generator
- AC couple to retrofit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- SA: NRS 097 certified
| DEYE SUN-16K-SG01LP1-EU Technical Data | |
|---|---|
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40–60 V |
| Max Charging Current | 290 A |
| Max Discharging Current | 290 A |
| Charging Strategy for Li-ion Battery | Self-adaptation to BMS |
| Number of Battery Inputs | 2 |
| Max DC Input Power | 20 800 W |
| Max DC Input Voltage | 1000 V |
| Start-Up Voltage | 125 V |
| MPPT Voltage Range | 150–425 V |
| Rated DC Input Voltage | 600 V |
| Max Operating PV Input Current | 26 A + 26 A + 26 A |
| Max Short-Circuit Current | 44 A + 44 A + 44 A |
| Number of MPPT Trackers | 3 |
| Number of Strings per MPPT | 2 |
| Rated AC Power | 16 000 W |
| Max AC Apparent Power | 17 600 VA |
| Rated AC Voltage / Range | 220/230 V, 0.85Un–1.1Un |
| Rated Output Frequency / Range | 50/60 Hz ±5 Hz |
| Grid Connection Form | L + N + PE |
| Max Continuous AC Passthrough | 80 A |
| AC Output Current | 76.5 A |
| Peak Power (Off-Grid) | 2 × rated power (10s) |
| Power Factor Adjustment | 0.8 leading to 0.8 lagging |
| Total Harmonic Distortion (THDi) | <3% |
| DC Injection Current | <0.5% |
| Max Efficiency | 97.6% |
| Euro Efficiency | 96.5% |
| MPPT Efficiency | >99% |
| Surge Protection Level | TYPE II (DC), TYPE III (AC) |
| Communication Interfaces | WiFi, RS485, CAN |
| Operating Temperature Range | –40 °C to +60 °C, >45 °C derating |
| Humidity | 0–100% |
| Altitude | 2000 m |
| Noise Level | <50 dB |
| Ingress Protection | IP65 |
| Inverter Topology | Non-isolated |
| Over Voltage Category | OVC II (DC), OVC III (AC) |
| Dimensions (WxHxD) | 464 × 763 × 282 mm (excluding brackets) |
| Weight | 52 kg |
| Cooling | Intelligent air cooling |
| Warranty | 5/10 years (installation dependent) |
| Standards | IEC 61727, IEC 62116, AS4777.2, NRS 097, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| Weight | 52 kg |
|---|---|
| Dimensions | 464 × 763 × 282 mm |
| Model | SUN-12K-SG01LP1-EU | SUN-14K-SG01LP1-EU | SUN-16K-SG01LP1-EU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range(V) | 40-60 | ||
| Max.Charging Current(A) | 220 | 250 | 290 |
| Max.Discharging Current(A) | 220 | 250 | 290 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Number of battery input | 2 | ||
| PV String Input Data | |||
|
Max. PV Access Power (W)
|
24000 | 28000 | 32000 |
| Max DC Input Power（W） | 19200 | 22400 | 25600 |
| Max DC Input Voltage（V） | 500 | ||
| Start-up Voltage（V） | 125 | ||
| MPPT Voltage Range（V） | 150-425 | ||
| Rated DC Input Voltage(V) | 370 | ||
| Max Operating PV Input Current（A） | 26+26+26 | ||
| Max Input Short-Circuit Current（A） | 44+44+44 | ||
| No.of MPP Trackers/No.of String Per MPP Tracker | 3/2+2+2 | ||
| AC Input/Output Data | |||
| Rated AC Input/Output Active Power（W） | 12000 | 14000 | 16000 |
| Max AC Input/Output Apparent Power （VA） | 13200 | 15400 | 17600 |
| Rated AC Input/Output Current（A） | 54.5/52.2 | 63.6/60.9 | 72.7/69.6 |
| Max AC Input/Output Current（A） | 60/57.4 |
70/67
|
80/76.5 |
| Max Continuous AC Passthrough (grid to load)（A） | 100 | ||
| Peak Power (off-grid)（W） | 2 times of rated power,10s | ||
| Rated Input/Output Voltage/Range(V) | 220V/230 0.85Un-1.1Un | ||
| Grid Connection Form | L+N+PE | ||
| Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||
| Power Factor Adjustment Range | 0.8 leading-0.8lagging | ||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||
| DC Injection Current | <0.5%ln | ||
| Efficiency | |||
| Max Efficiency | 97.6% | ||
| Euro Efficiency | 96.5% | ||
| MPPT Efficiency | ＞99% | ||
| Equipment Protection | |||
|
Integrated
|
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
|
||
| Surge Protection Level | TYPE II(DC),TYPE II(AC) | ||
| Interface | |||
| Communication Interface | RS485/RS232/CAN | ||
|
Monitor Mode
|
GPRS/WIFI/Bluetooth/4G/LAN(optional)
|
||
| General Data | |||
| Operating Temperature Range | -40 to +60℃, >45℃ Derating | ||
| Permissible Ambient Humidity | 0~100% | ||
| Permissible Altitude | 2000m | ||
| Noise | ＜50 dB(A) | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC),OVC III(AC) | ||
| Cabinet size（W*H*D）[mm] | 464*763*282（Excluding connectors and brackets） | ||
| Weight[kg] | 52 | ||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
||
| Type Of Cooling | Intelligent air cooling | ||
| Grid Regulation | IEC 61727,IEC 62116,NRS 097 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
